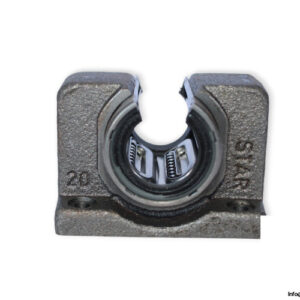

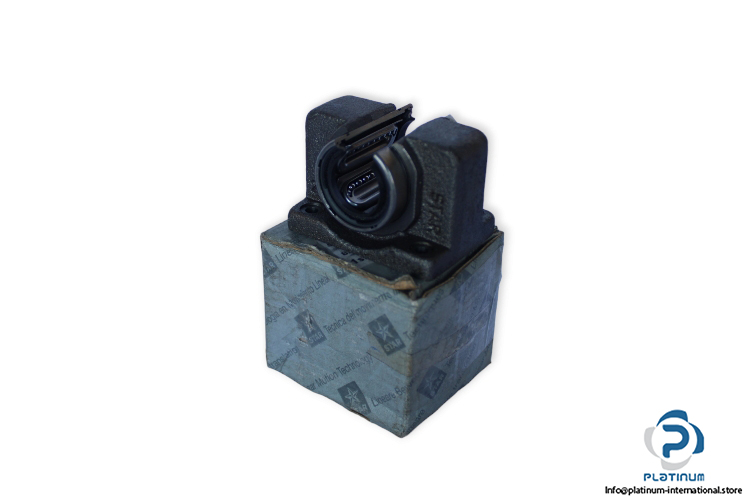

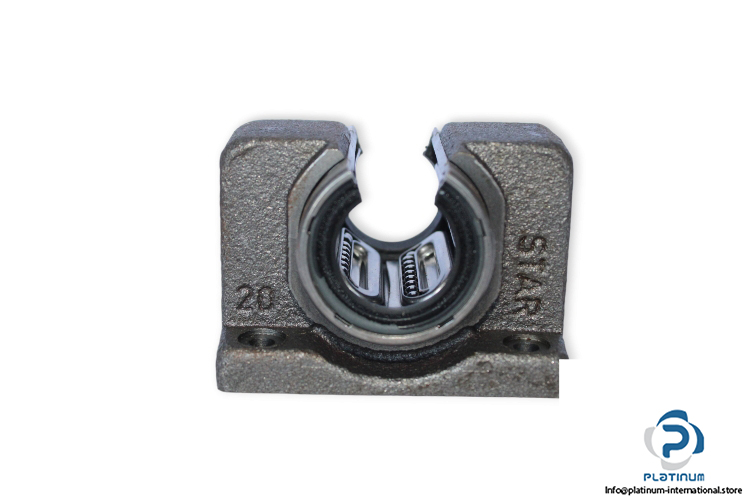

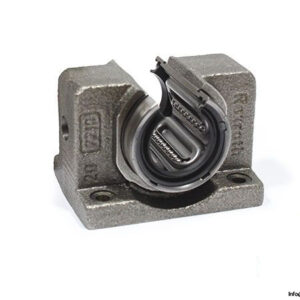

STAR / REXROTH R106722000 LINEAR SET

The STAR / REXROTH R106722000 Linear Set is an industrial-grade linear motion system designed for precision, speed, and reliability. Built with a cast iron housing and engineered for high acceleration and dynamic loads, this set delivers exceptional performance in demanding environments.

Manufacturer: STAR / REXROTH
Type: Linear Set
MNR: R106722000

Technical Information

• Size: 20 mm
• Design Type: Open
• Material (Housing): Cast Iron
• Friction Force: 6 N
• Breakaway Force: 16 N
• Dynamic Load Capacity C: 1280 N
• Static Load Capacity C0: 970 N

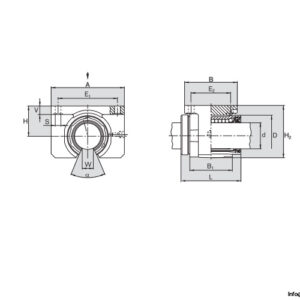

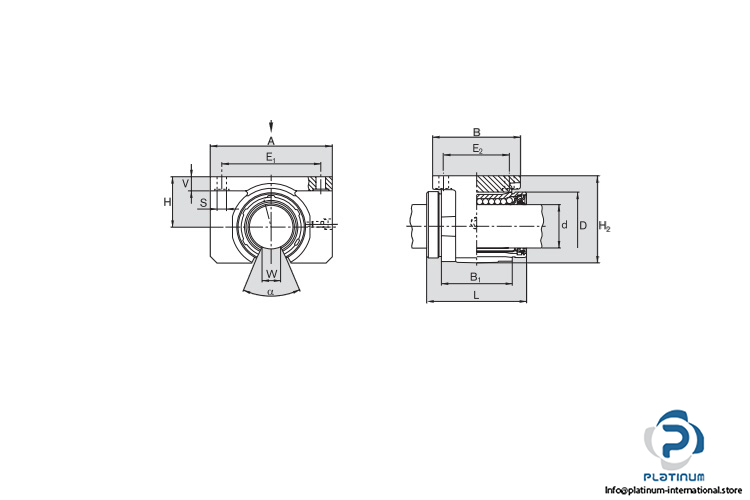

• Width (A): 60 mm
• Length (B): 42 mm
• Height of System (H): 25 mm
• B1: 28 mm
• D: 32 mm
• H2: 42 mm
• Angle: 60°
• Maximum Acceleration Travel amax: 100 m/s²
• Max. Permissible Speed vmax: 2.5 m/s
• Ambient Temperature: -10 / 100 °C
