Rexroth R106722000 Linear SET

Manufacturer: Rexroth Star

Type: LINEAR SET LSGO-M-20-DD

MNR: R106722000

With Standard Linear Bushing

Shaft diameter: 20 mm

Design Type: Open

Material (housing): Cast Iron

Friction force: 6 N

Breakaway force: 16 N

Dynamic Load Capacity: 1280 N

Static Load Capacity: 970 N

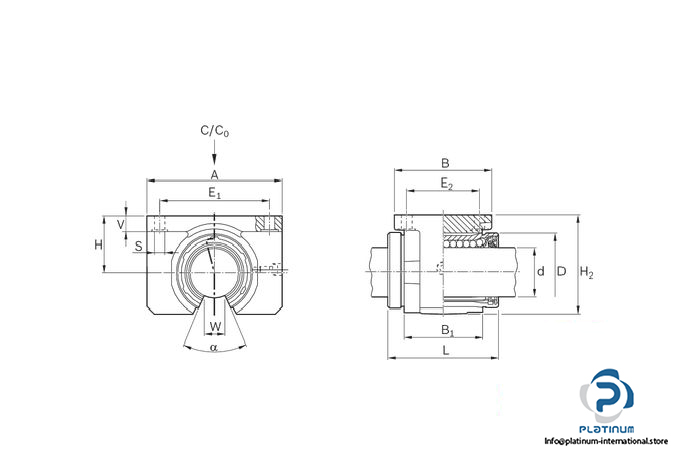

Dimensions:

A: 60 mm

B: 42 mm

H₂: 42 mm

Maximum Acceleration Travel a_max: 100 m/s²

Max. Permissible Speed v_max: 2.5 m/s

Ambient temperature: -10 … +100 °C

Weight: 0.40 kg
