STEGMANN / SICK SRS-50 MOTOR FEEDBACK SYSTEM
The SRS-50 motor feedback system from STEGMANN / SICK delivers high-resolution feedback with robust performance. Engineered for precision and reliability, it features a solid shaft design and binary-coded signal output, making it ideal for closed-loop motion control systems in demanding industrial environments.
Manufacturer: STEGMANN / SICK
Type: Motor Feedback System
Model: SRS-50

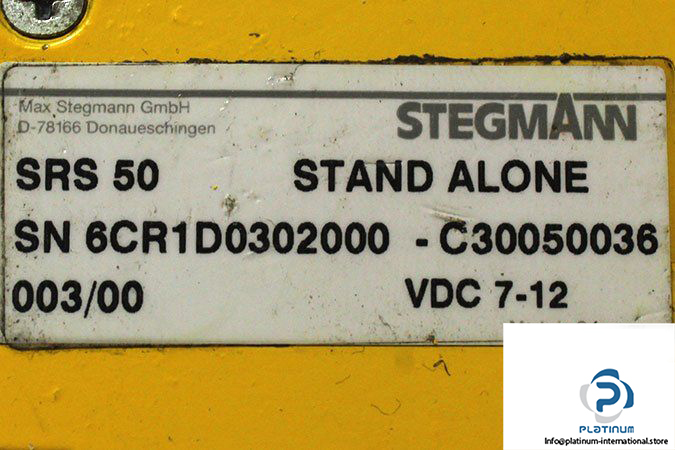

S. No: 6CR1D0302000-C30050036
Ref No: 003/00
Technical Information
- Flange Type: Face mounting flange
- Shaft Type: Solid shaft
- Shaft Diameter: 10 mm
- Number of Sine/Cosine Periods per Revolution: 1,024
- Total Number of Steps: 32,768 (single SRS)
- Voltage Supply: 7 / 12 VDC
- Switching Frequency: 0 / 200 kHz
- Type of Code: Binary
- Consumption: 80 mA
- Protection Class: IP40
- Temperature Range: -20 / 115°C
