Manufacturer: STEINMEYER
Type: DIN Standard Flanged Nut, Ball Oversize Preload
Model: 1416/10.40.290.375
Nut type: 1416/10.40.7,5.4

Size: 40
Nominal Diameter d_N: 40 mm

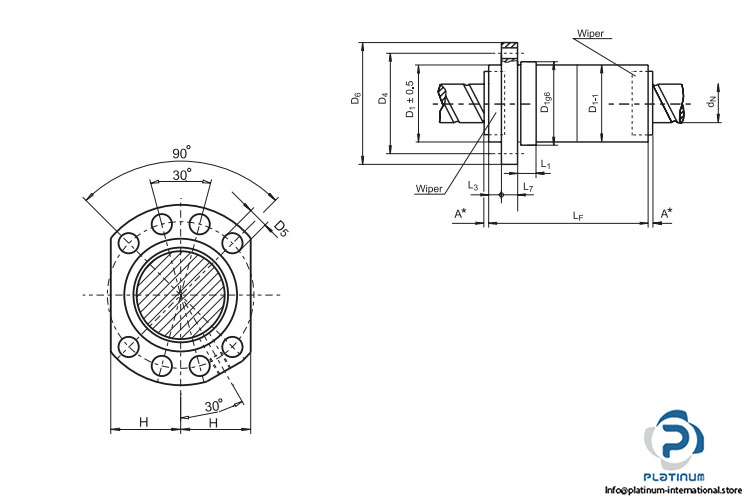

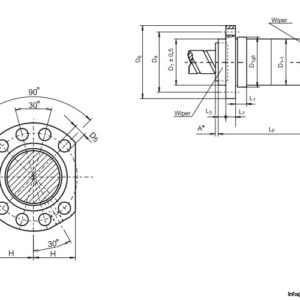

Dimensions:
Flange diameter D₆: 93 mm
Nut outer diameter D₁ g6: 63 mm
Nut length L_F: 97 mm
Flange thickness L₇: 14 mm
Cutting Flange Width(2H): 70 mm
L₁: 16 mm
D₄: 78 mm
Lead P: 10 mm
No. of circuits i: 4
Ball diameter d_W: 7.5 mm
Direction of Lead: Right-Hand Thread
Dynamic load rating C_a: 59 kN
Static load rating C_0a: 95.1 kN
Stiffness R_{nu, ar}: 520 N/µm
Threaded length: 290 mm
Total screw length: 375 mm
