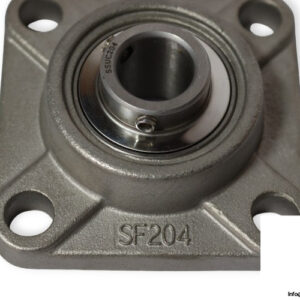

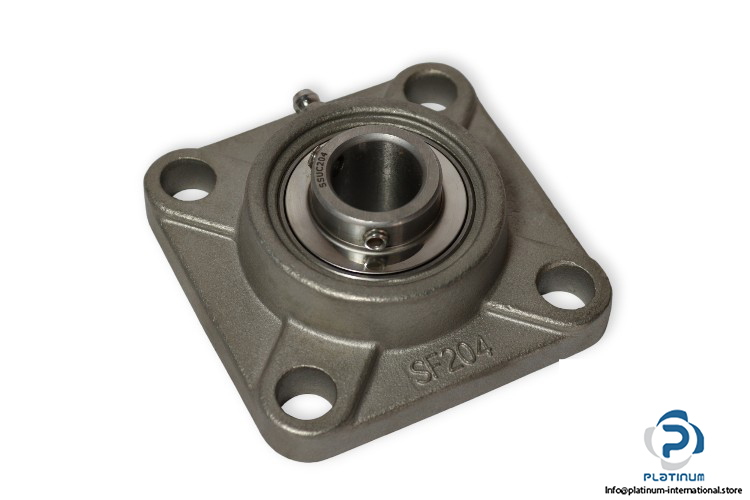

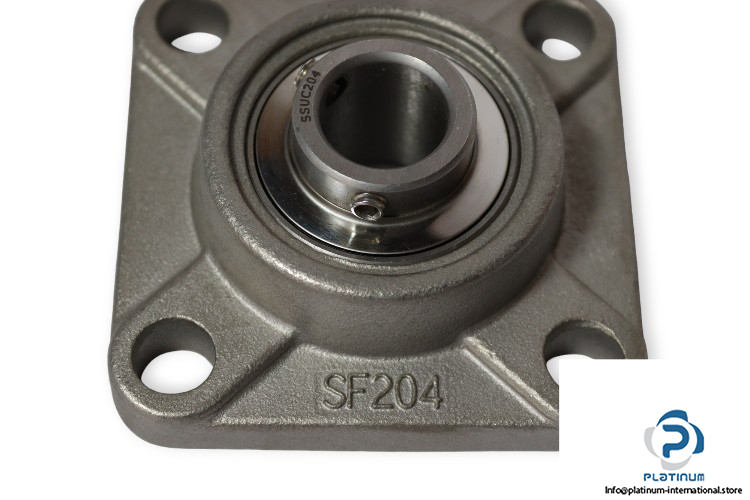

Type: Stainless Steel Four-Bolt Square Flange Unit
Model: SUCSF 204
Housing No.: SF204
Bearing No.: SSSUC204

Dimensions
Da: 47 mm
Overall length a: 86 mm
i: 15.1 mm
Housing foot height / flange height g: 12 mm
Overall Width I: 25.4 mm
Distance Between Attachment Bolts e: 63.5 mm
Mounting hole length s: 12 mm
Mounting: Four-Bolt Flange
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
