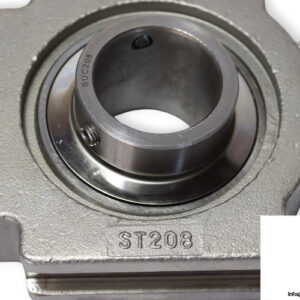

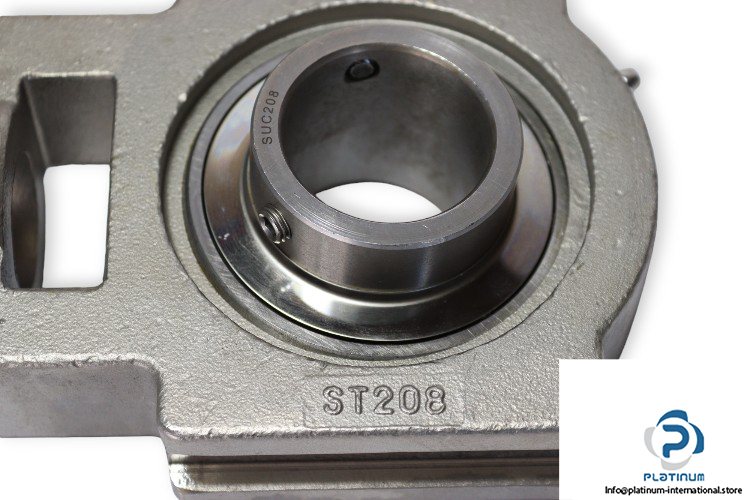

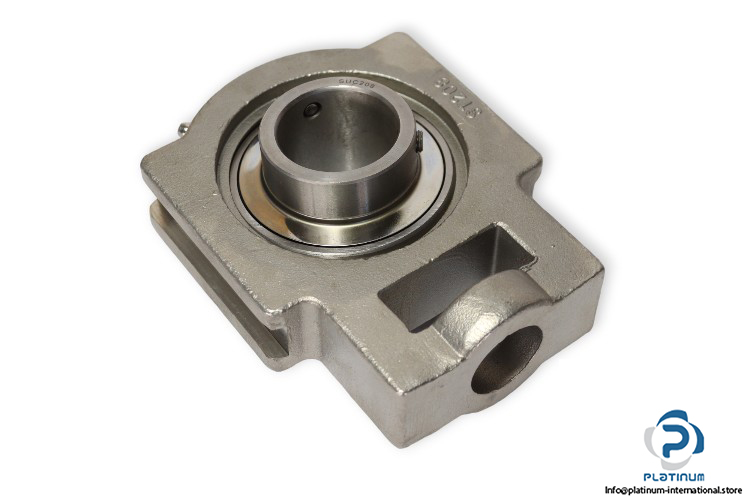

Type: Stainless steel take up ball bearing unit
Model: SUCST 208
Housing No.: ST208
Bearing No.: SUC208

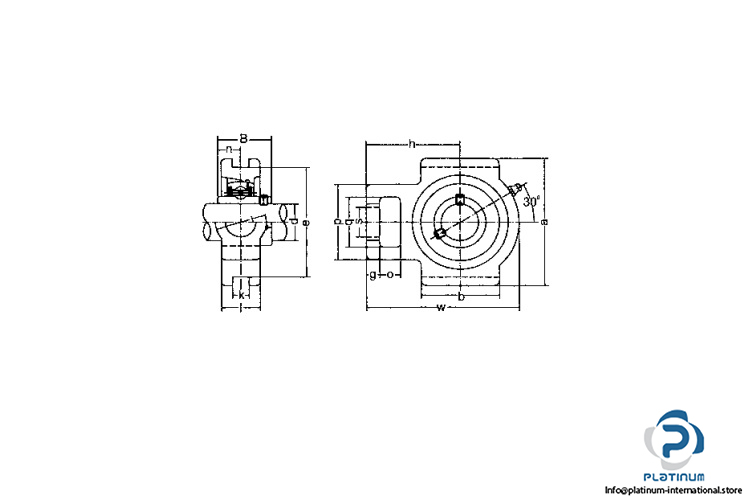

Dimensions
Bore Diameter d: 40 mm
Overall length a: 114 mm
Overall height w: 144 mm
Base width B: 49.2 mm
Distance Between Attachment Bolts e: 102 mm
Housing type: Take-up
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
