Translink UCT205SS Stainless Steel Take UP Ball Bearing Unit
New
In stock4 unitsReady to ship
Manufacture: TRANSLINK Type: Stainless steel take up ball bearing unit Model: SUCT 205SS
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacture: TRANSLINK
Type: Stainless steel take up ball bearing unit
Model: SUCT 205SS

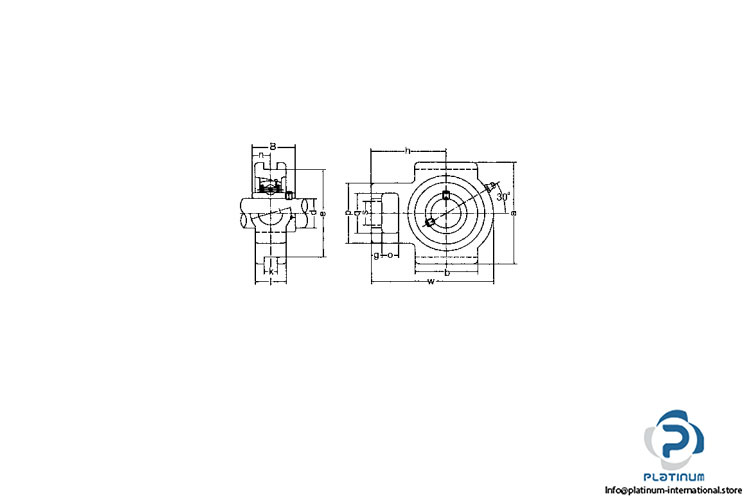

Dimensions
Bore Diameter d: 25 mm
Length of attachment slot O: 16 mm
Overall length a: 89 mm
Distance from attachment end face to center line of spherical seat diameter h: 62 mm
Height of attachment end P: 51 mm
Height of attachment slot q: 32 mm
Overall height w: 97 mm
Base width B: 34.1 mm
Length of piloting groove b: 51 mm
Distance Between Attachment Bolts e: 84 mm
Housing type: Take-up
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
