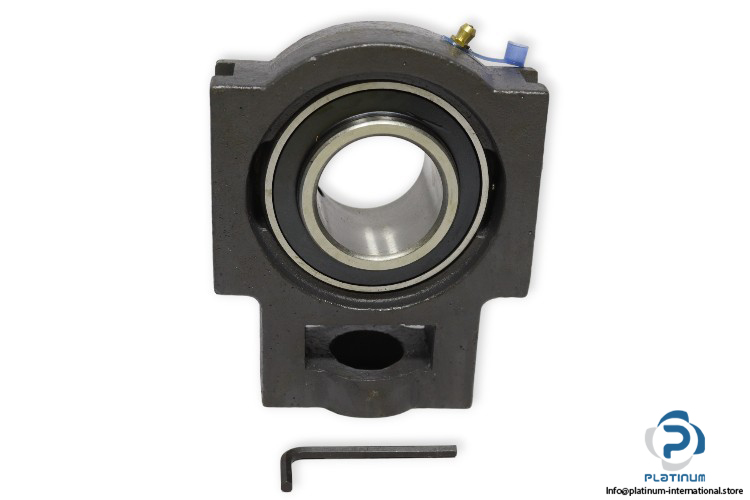

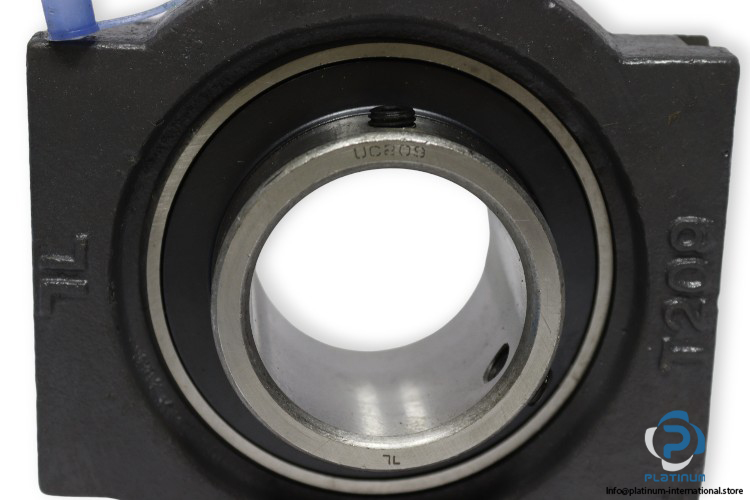

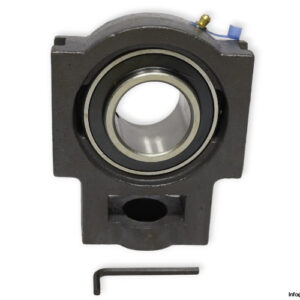

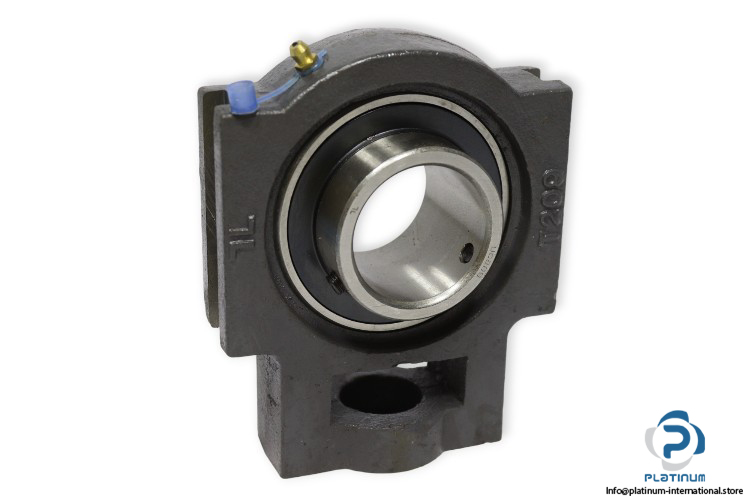

Translink UCT209 Take UP Ball Bearing Unit
Manufacture: Translink
Manufacture: Translink
Type: take up ball bearing unit
Model: UCT 209
Housing No.: T209
Bearing No.: UC209

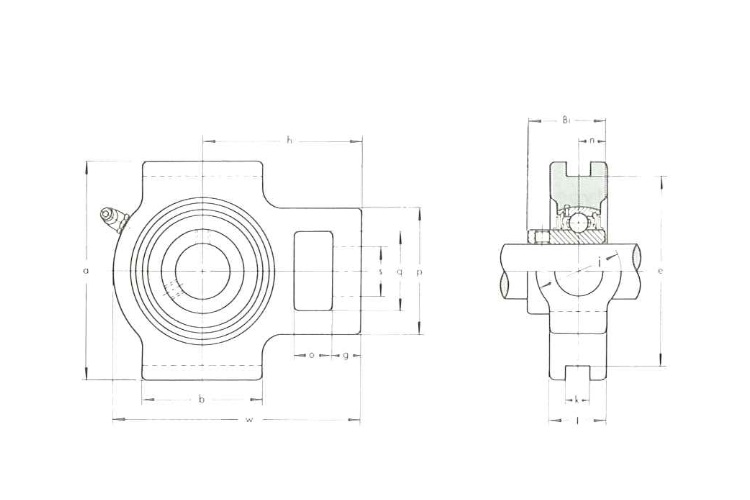

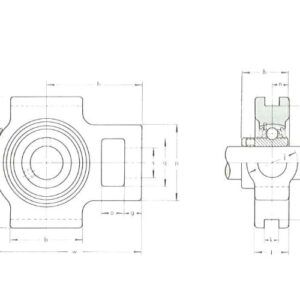

Shaft diameter d: 45 mm
Overall width j: 49 mm
Width of inner ring Bi: 49.2 mm
Width of piloting groove k: 16 mm
Overall height a: 117 mm
Height of attachment end S: 83 mm
Overall length w: 144 mm
Diameter of attachment bolt hole q: 29 mm
Length of attachment slot o: 19 mm
Height of attachment slot p: 49 mm
Housing type: Take-up
Locking Device: set screw locking
