Translink UCT204 Take UP Ball Bearing Unit

Name: TRANSLINK UCT204 TAKE UP BALL BEARING UNIT
SKU: 1030852
Availability: LimitedAvailability

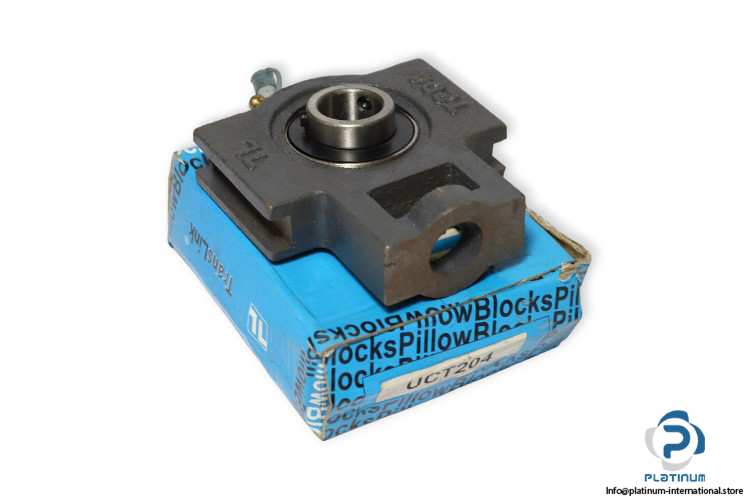

translink-UCT204-take-up-ball-bearing-unit-(new)-(carton)

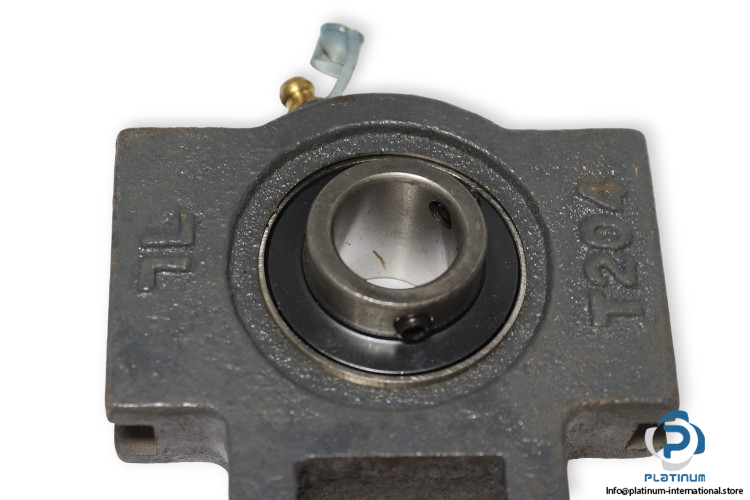

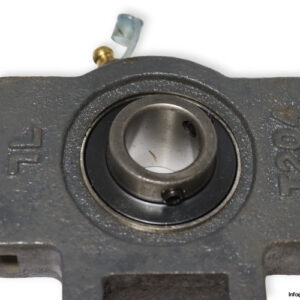

translink-UCT204-take-up-ball-bearing-unit-(new)-(carton)-1

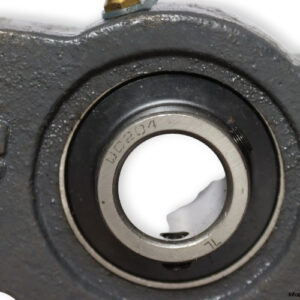

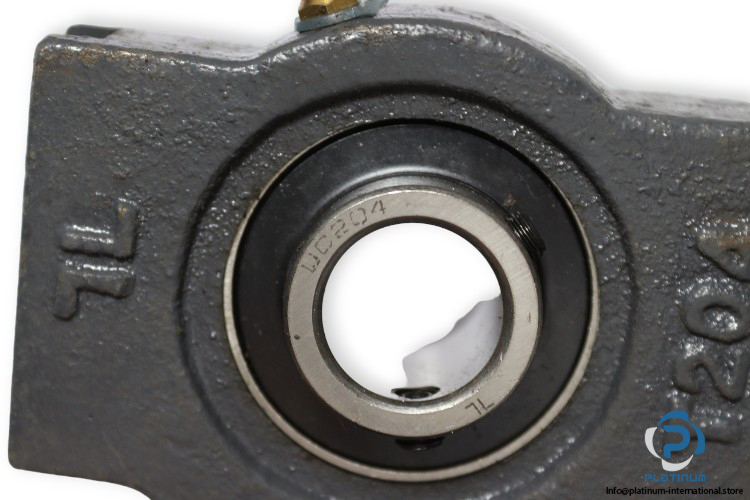

translink-UCT204-take-up-ball-bearing-unit-(new)-(carton)-2

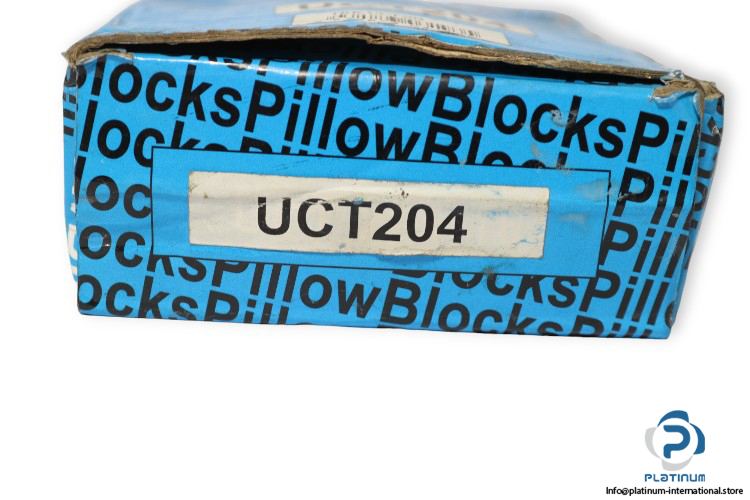

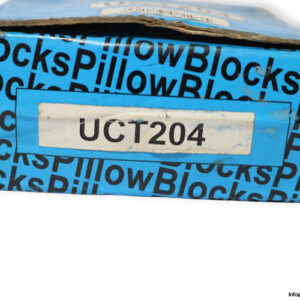

translink-UCT204-take-up-ball-bearing-unit-(new)-(carton)-3

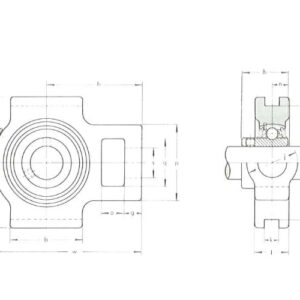

translink-UCT204-take-up-ball-bearing-unit-(new)-(carton)-4

New

In stock8 unitsReady to ship

Manufacture: Translink

Type:

take up ball bearing unit

Model:

UCT 204

Housing No.:

T204

Bearing No.:

UC204

Manufacturer

TRANSLINK

SKU

1030852

Category

Plummer Block Housing Units

Condition

New

20 bearing Block mm Take Translink UCT204 Unit up

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacture: Translink
Type: take up ball bearing unit
Model: UCT 204
Housing No.: T204
Bearing No.: UC204

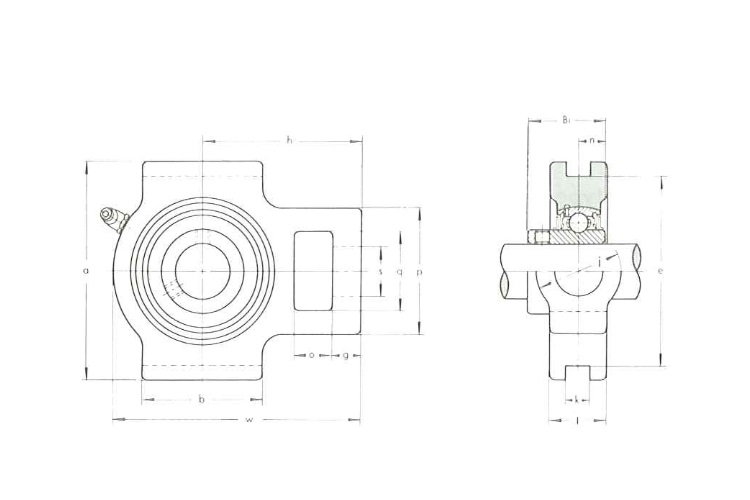

Shaft diameter d: 20 mm
Overall width j: 32 mm
Width of inner ring Bi: 31.4 mm
Width of piloting groove k: 12 mm
Overall height a: 89 mm
Height of attachment end S: 51 mm
Overall length w: 94 mm
Diameter of attachment bolt hole q: 19 mm
Length of attachment slot o: 16 mm
Height of attachment slot p: 32 mm
Length of piloting groove b: 51 mm
Housing type: Take-up
Locking Device: set screw locking
