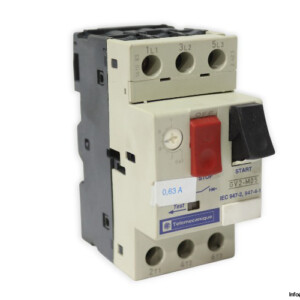

Telemecanique GV2M05 Motor Circuit Breaker
The Telemecanique GV2M-05 Motor Circuit Breaker provides reliable protection for motors and control circuits against overloads and short circuits. Designed for durability and accuracy, it offers consistent performance across a wide current range and environmental conditions.
Manufacturer: Telemecanique
Type: Motor Circuit Breaker
MNR: GV2M05
Technical Information
- Rated Supply Voltage: 690 V AC
- Operating Frequency: 50 / 60 Hz
- Rated Current: 0.63 / 1 A
- Power Loss: 2.5 W
- Rated Impulse Voltage (Uimp): 6 kV
- Contact: 3 Poles
- Service Switching Capacity: 100 kV
- Breaking Switching Capacity: 100 kV
- Operation Temperature: -20 / 60 °C
- Protection Class: IP20
- Dimensions: 89 x 45 x 78.5 mm
