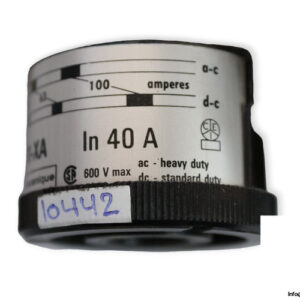

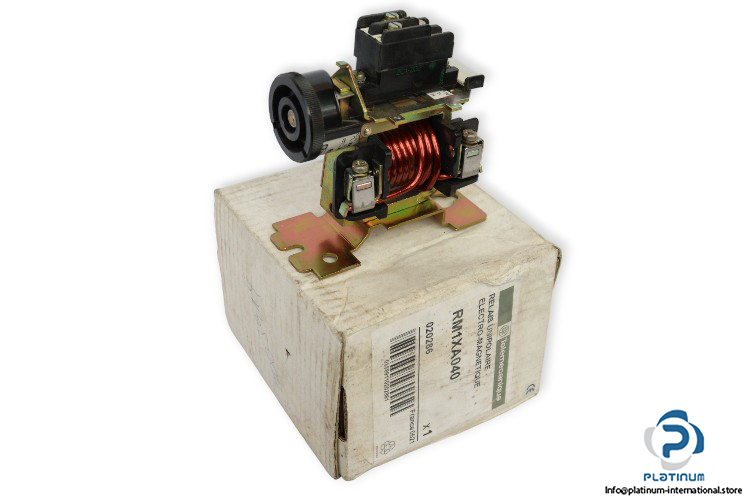

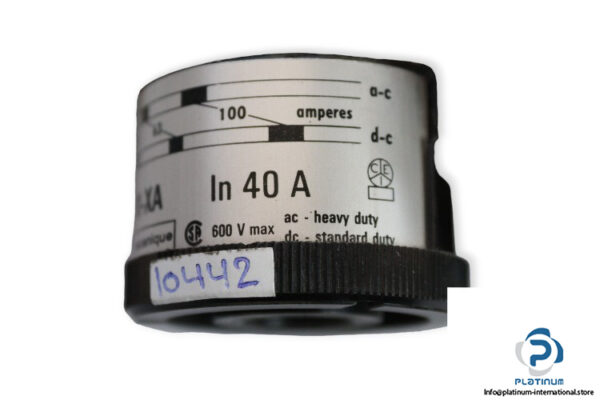

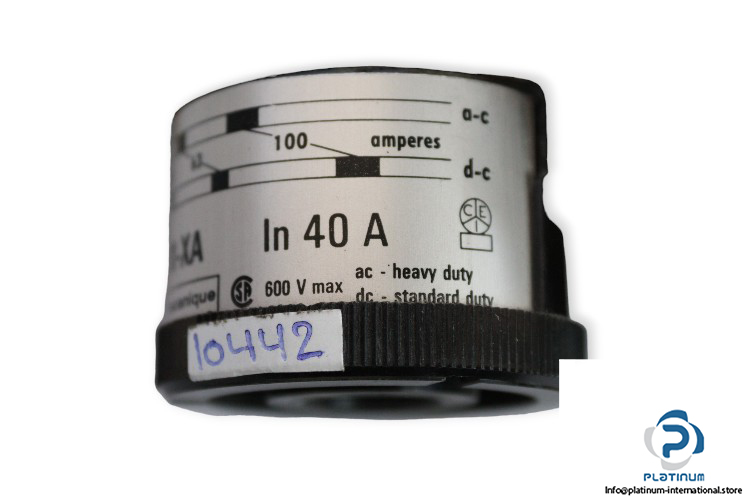

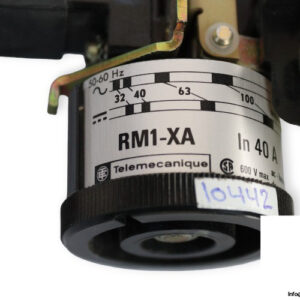

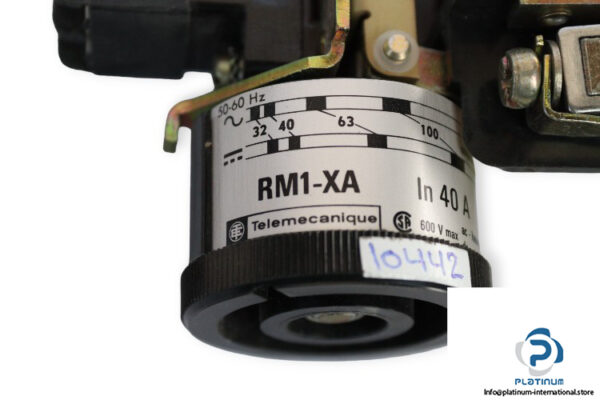

Manufacture: Telemecanique
Type: Single-pole magnetic over current relay
Model: RM1-XA
Product name: TeSys RM1
Device short name: RM1XA

Device application: Protection
Continuous output Current: 40 A
Magnetic tripping current: 32 … 100 A
Rated operational current Ie: 18.1 … 29 A (AC, DC)
Conventional free air thermal current Ith: 10 A
Rated operational voltage Ue: 600 V AC, DC
Network frequency: 0 … 60 Hz
Auxiliary contact composition: 1 C/O
Ambient air temperature for operation: -40 … 60 °C
