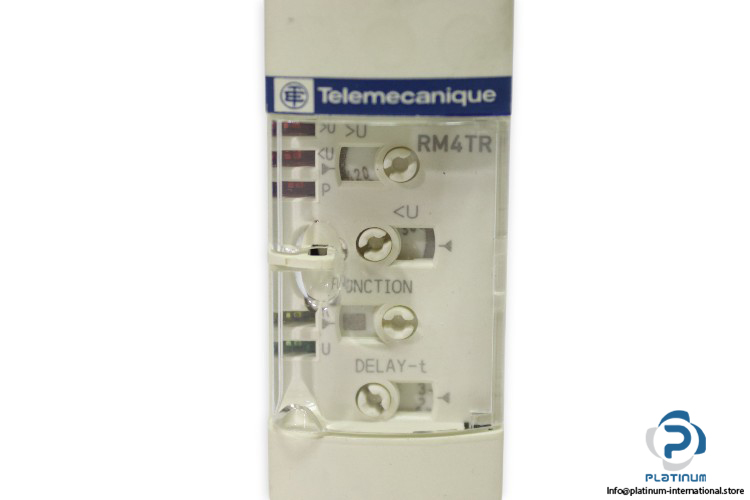

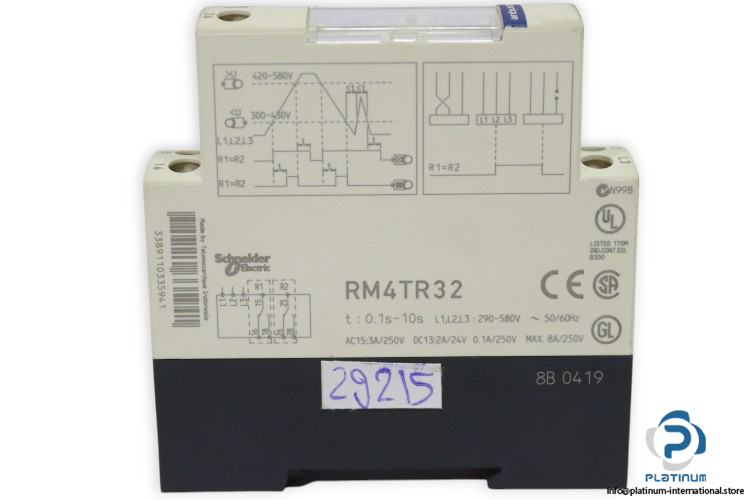

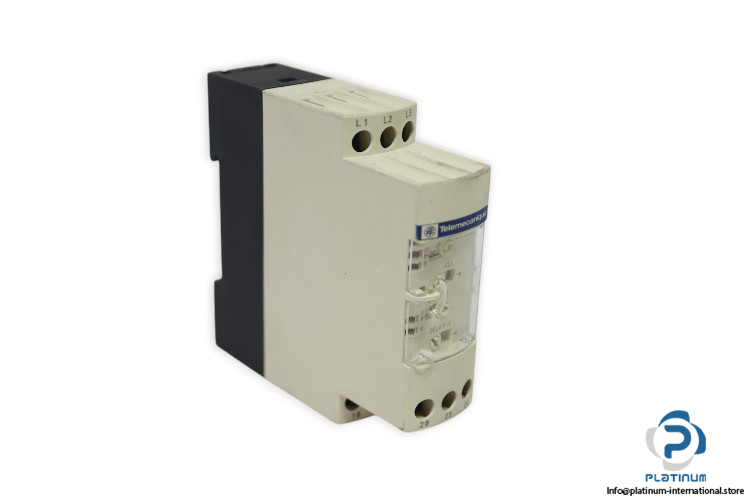

Telemecanique / Schneider Electric RM4TR32 Three-Phase Network Control Relay

The Telemecanique / Schneider Electric RM4TR32 is a three-phase network control relay from the Harmony Relay range. It is engineered to monitor voltage levels and provide safe, reliable control in industrial electrical systems, ensuring consistent performance under demanding conditions.

Manufacturer: Telemecanique / Schneider Electric
Type: Three-Phase Network Control Relay (380 and 500 V)
Model: RM4TR32
Part No.: 033594 / 33CLF0H057B1
Code: 8B 0419/C LROE 017 B9/G0012703
Serial No.: 3389110335941 / 908230463
Line: 53
Range of Product: Harmony Relay
Relay Name: RM4-T

Technical information

• Time Range: 0.1 to 10 s
• Voltage: 290 to 580 V @ 50/60 Hz, 420 to 580 V, 300 to 430 V
• Voltage Rating:
• AC15: 3 A / 250 V
• DC13: 2 A / 24 V, 0.1 A / 250 V, Max. 8 A / 250 V
• Output Contacts: 2 C/O
• Poles Description: 3 P
• Maximum Switching Voltage: 440 V AC
• Switching Voltage: 250 V AC
• Ambient Air Temperature (Operation): -20 / +65 °C
• Degree of Protection: IP20
• Dimensions: 78 x 22.5 x 80 mm
