Manufacturer:  TELEMECANIQUE SCHNEIDER

Type:  INDUCTIVE SENSOR

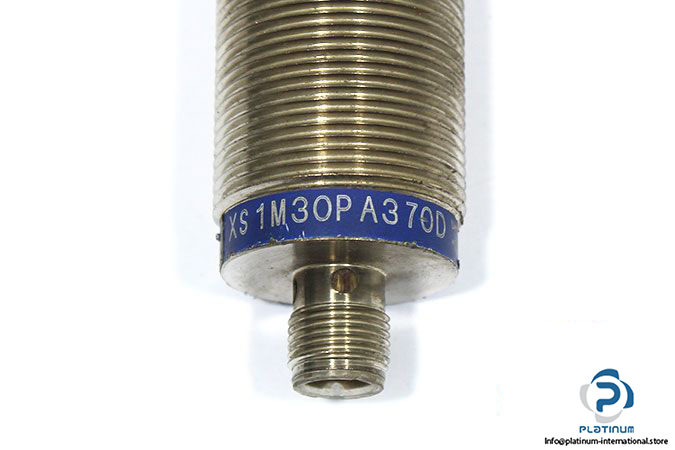

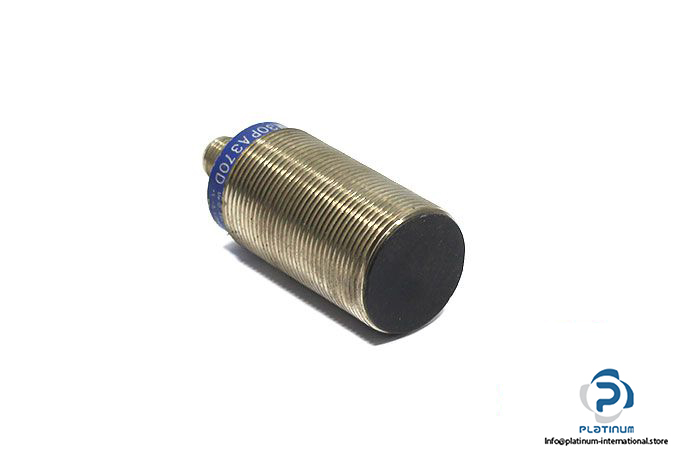

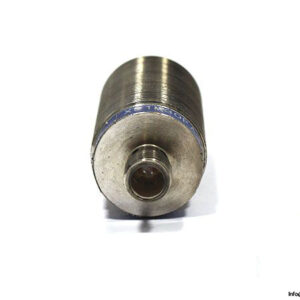

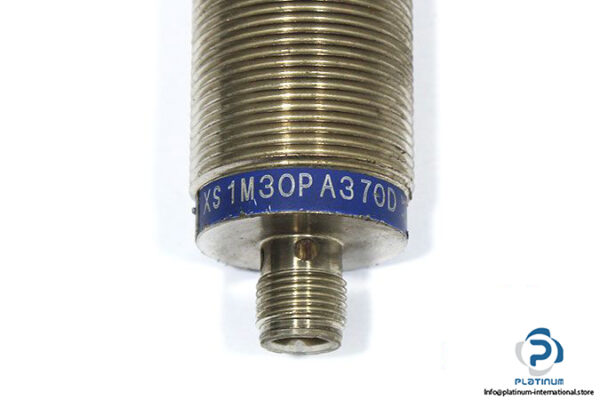

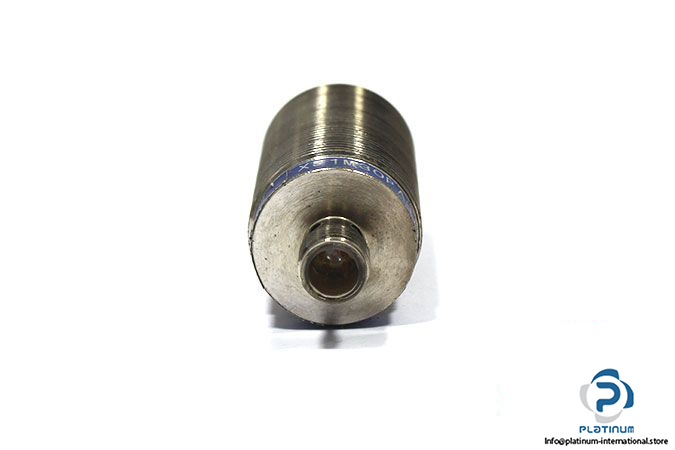

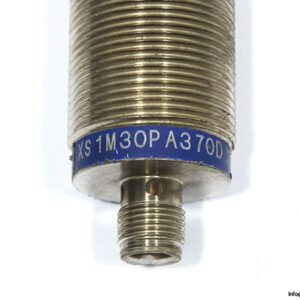

Model: XS1M30PA370D

Sensing Range: 10 mm

Operating Voltage: 12 … 48 V DC

Switching Capacity: <= 200 mA
No-Load Supply Current: ≤ 10 mA

Maximum Voltage Drop: <= 2 V
Switching Frequency: <= 1000 Hz
Signal Output: PNP

Switching Output: Normally Open

Sensor Design: Cylindrical M30

Electrical Connection: Male Connector M12, 4-Pin

Diameter, Length: 30, 70 mm

Degree of Protection: IP68

Ambient Operating Temperature: -25 … 80 °C

Body Type: Fixed

Housing Material: Metal

Mounting: Flush-Mountable

Weight: 0.12 kg
