Manufacturer: Trans Link
Type: Round flange ball bearing unit
Model: UCFC 204
Bearing Number: UC204
Housing Number: FC204

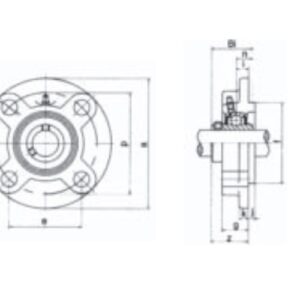

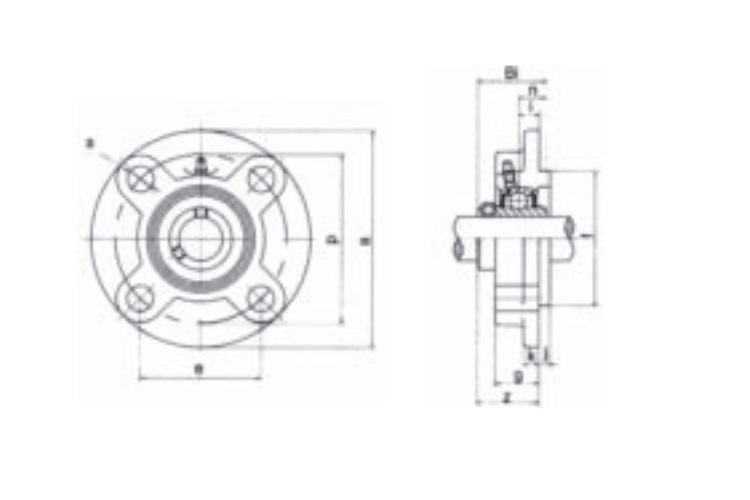

Dimensions
Bore Diameter d: 20 mm
Outside diameter a: 100 mm
Distance between attachment bolts e: 55.1 mm
Pitch diameter of attachment bolts p: 78 mm
Length of attachment bolt hole S: 12 mm
Width of inner ring Bi: 31 mm
Overall width Z: 28.7 mm
Locking Device: Set Screw
Material, housing: Cast iron
