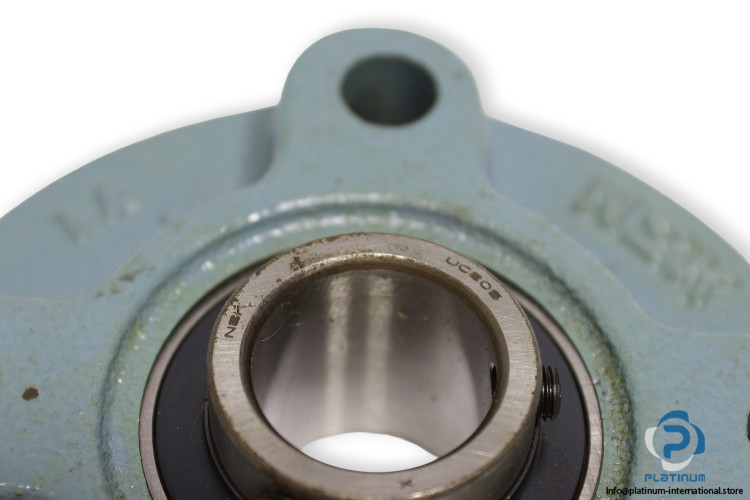

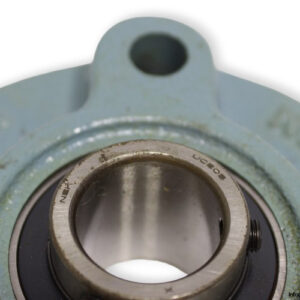

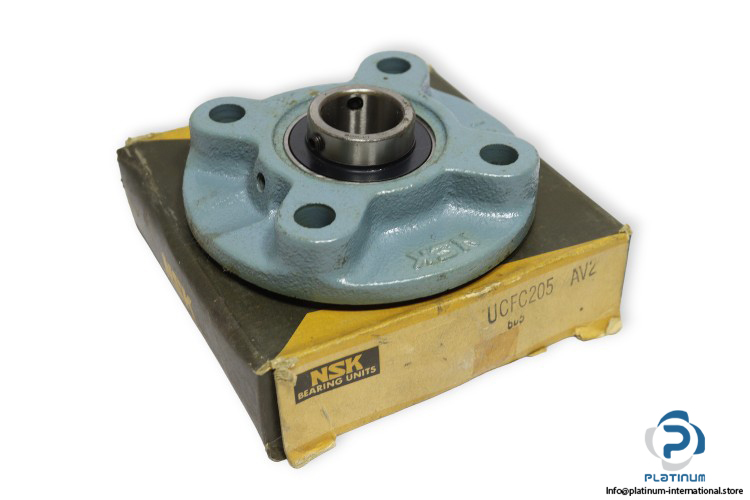

NSK UCFC205 AV2 Round Flange Ball Bearing Unit

Manufacturer: NSK
Type: Round flange ball bearing unit, cast housing with spigot joint
Model: UCFC 205 AV2
Bearing Number: UC205

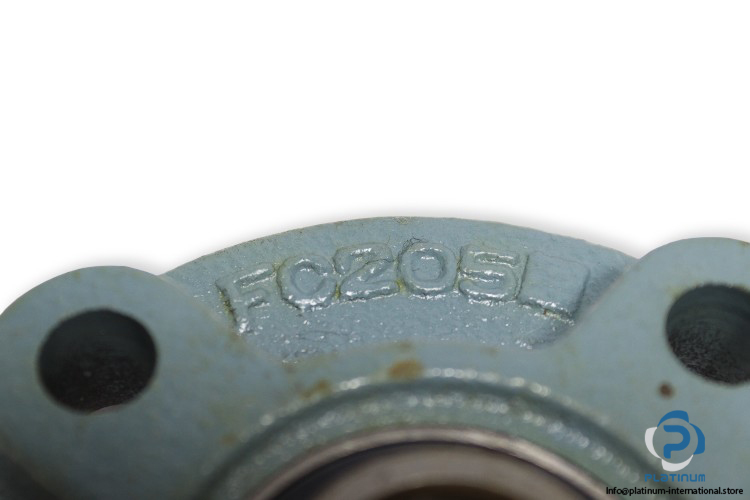

Housing Number: FC205

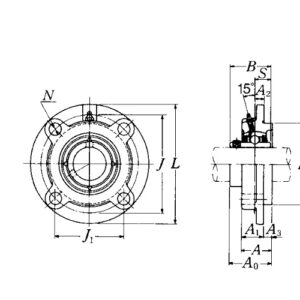

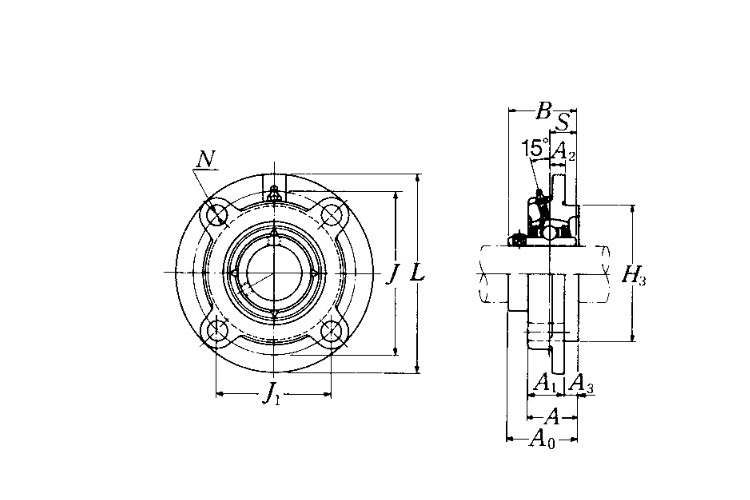

Dimensions
Bore Diameter d: 25 mm
Outside diameter L: 115 mm
Distance between attachment bolts J1: 63.6 mm
Pitch diameter of attachment bolts J: 90 mm
Length of attachment bolt hole N: 12 mm
Width of inner ring B: 34.1 mm
Overall width A0: 35.8 mm
Bolt size: M10
Locking Device: Set Screw
