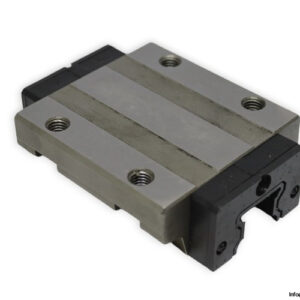

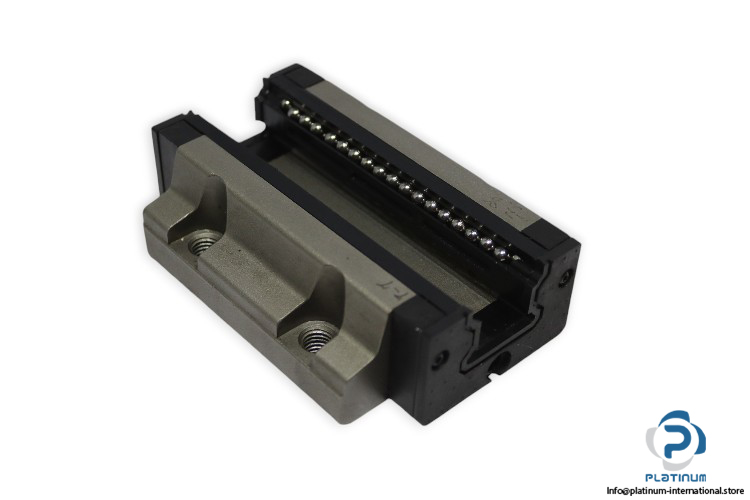

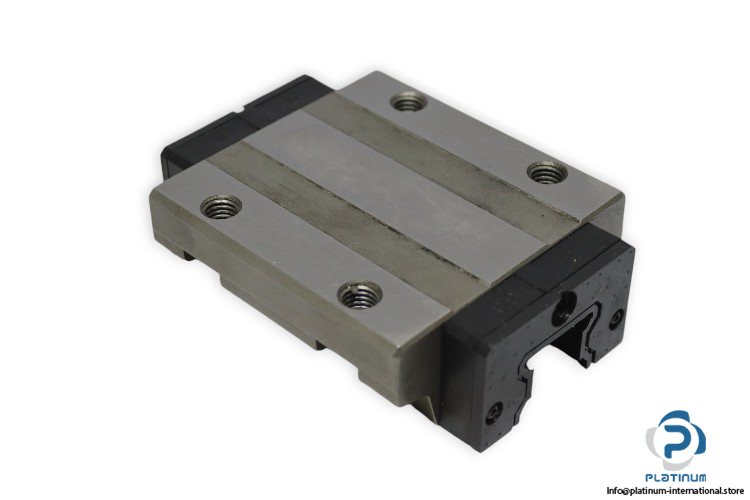

Manufacturer: TSUBAKI
Type: LINEAR BEARING BLOCK
Model: H30LEA

Size: 30 mm

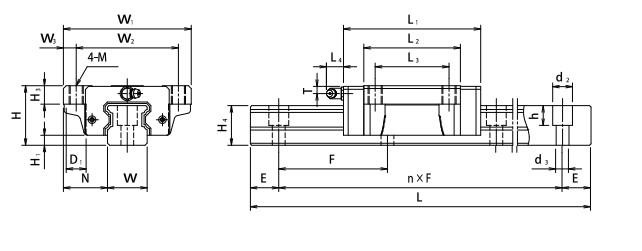

Dimensions
Total Height H: 42 mm
Block Height(H-H1): 35 mm
Width N: 31 mm
Width W₁: 90 mm
Width W₃: 9 mm
Block Length L₁: 123 mm
L₂: 94 mm
L₃: 52 mm
W₂: 72 mm
Block Type: Flange Type
Mounting Hole: 4 Tapped holes (M10×13)
Basic Load Ratings:
Dynamic C₅₀: 36530 N
Dynamic C₁₀₀: 28280 N
Static C₀: 69480 N
