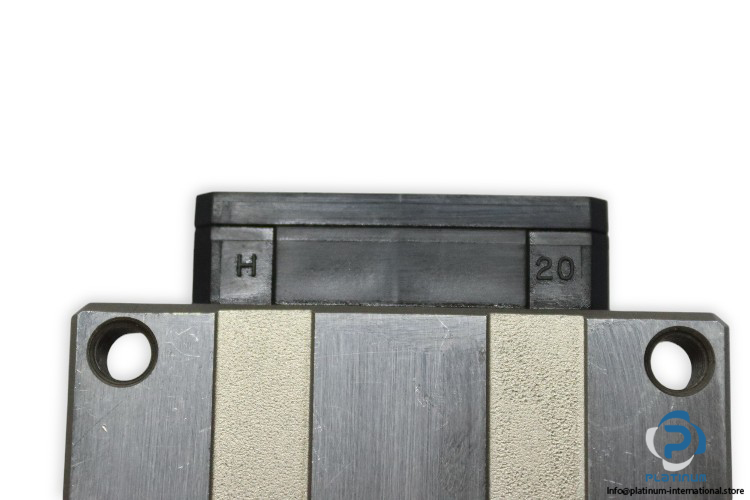

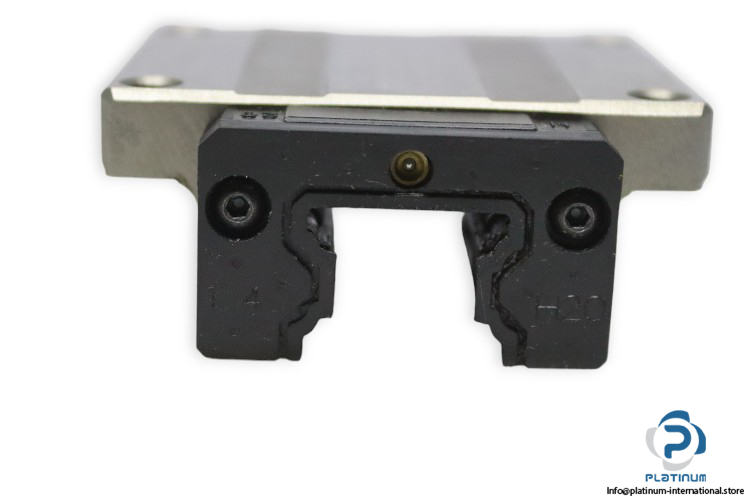

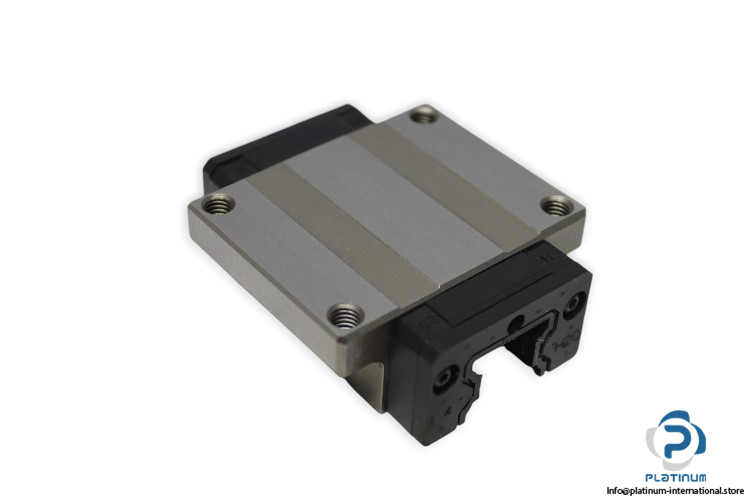

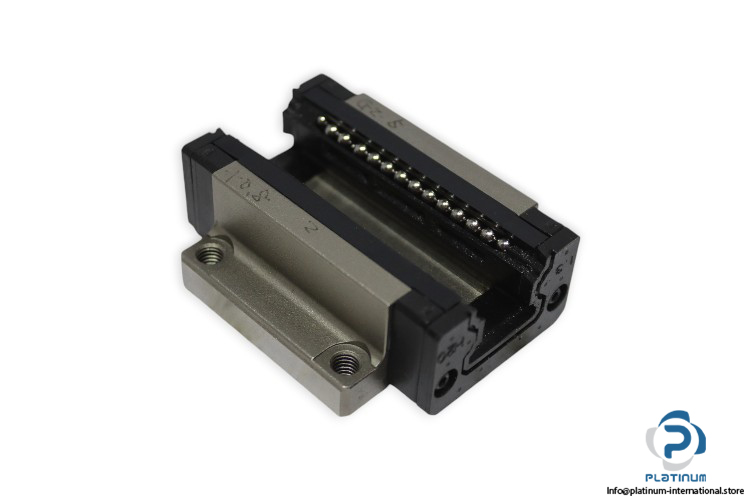

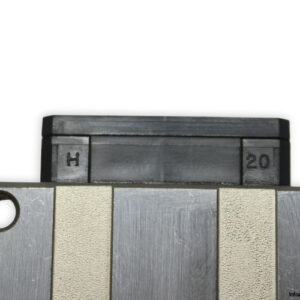

Tsubaki H20EA Linear Bearing Block

Name: TSUBAKI H20EA LINEAR BEARING BLOCK
SKU: 1057111
Price: 44.44 USD
Availability: InStock

tsubaki-H20EA-linear-bearing-block-(used)

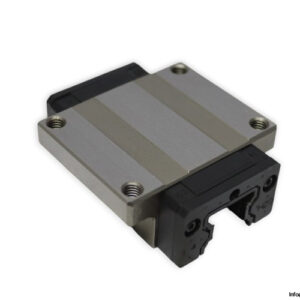

tsubaki-H20EA-linear-bearing-block-(used)-1

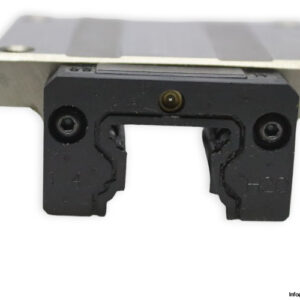

tsubaki-H20EA-linear-bearing-block-(used)-2

Used

In stock3 unitsReady to ship

44,44$

Manufacturer:

TSUBAKI

Type:

LINEAR BEARING BLOCK

Model:

H20EA

Manufacturer

TSUBAK

SKU

1057111

Category

Linear Motion

Condition

Used

20 bearing bearings Guideway Linear mm Motion Tsubaki

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: TSUBAKI
Type: LINEAR BEARING BLOCK
Model: H20EA

Size: 20 mm

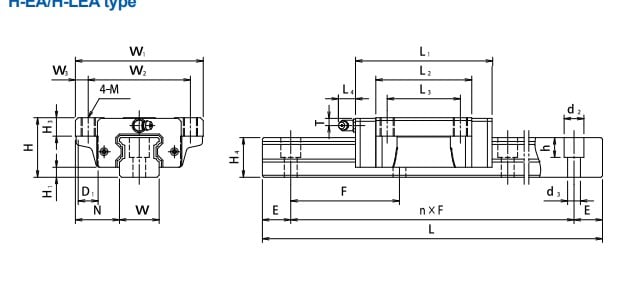

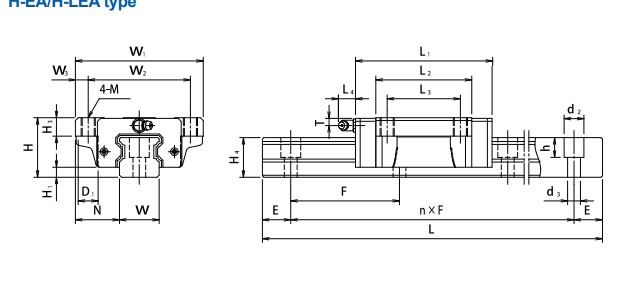

Dimensions
Total Height H: 30 mm
Block Height(H-H1): 25 mm
Width N: 21.5 mm
Width W₁: 63 mm
Width W₃: 5 mm
Block Length L₁: 73 mm
L₂: 50 mm
L₃: 40 mm
W₂: 53 mm
Block Type: Flange Type
Mounting Hole: 4 Tapped holes (M6×9)
Basic Load Ratings:
Dynamic C₅₀: 14210 N
Dynamic C₁₀₀: 11280 N
Static C₀: 26590 N
