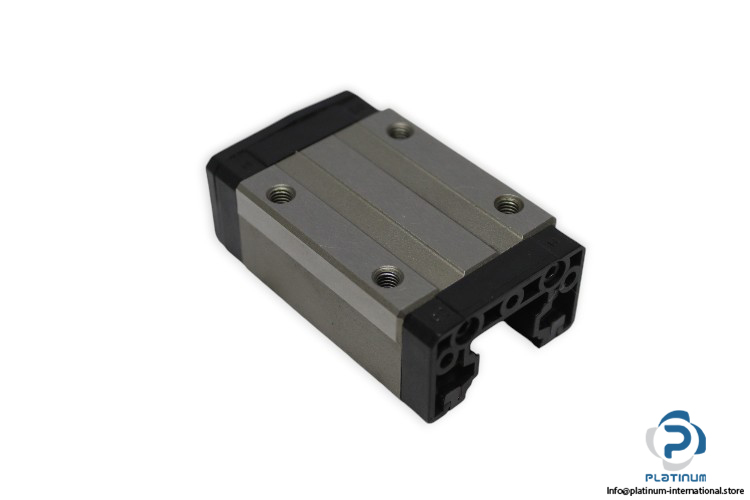

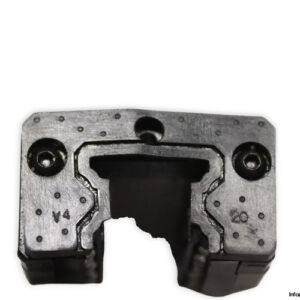

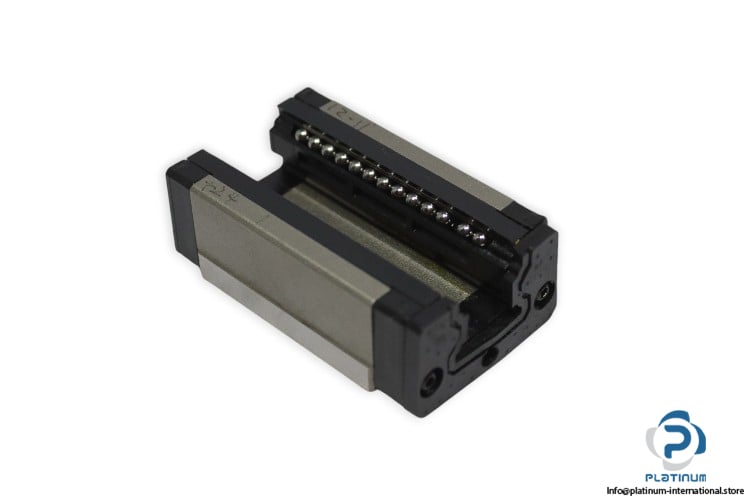

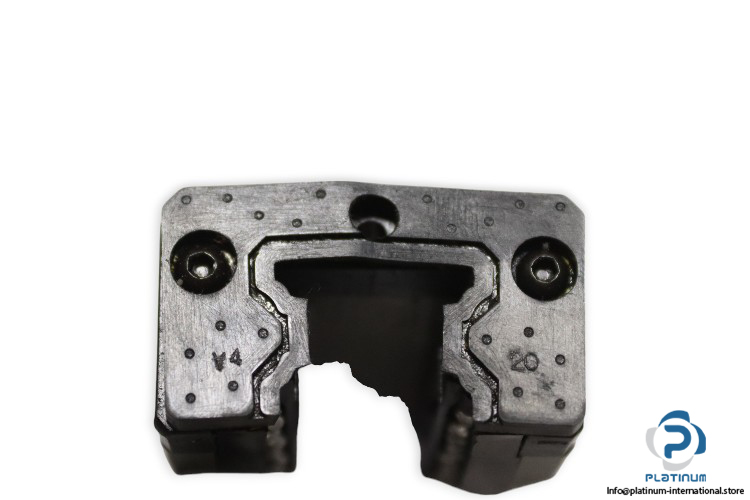

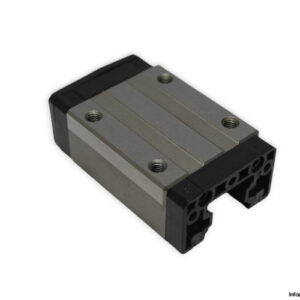

Manufacturer: TSUBAKI
Type: LINEAR BEARING BLOCK
Model: U20ER

Size: 20 mm

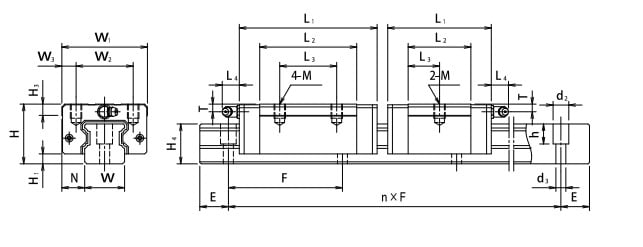

Dimensions
Total Height H: 28 mm
Block Height(H-H1): 24 mm
Width N: 11 mm
Width W₁: 42 mm
Width W₃: 5 mm
Block Length L₁: 73 mm
L₂: 50 mm
L₃: 32 mm
W₂: 32 mm
Block Type: Flange Type
Mounting Hole: 4 Tapped holes (M5×7)
Basic Load Ratings:
Dynamic C₅₀: 14210 N
Dynamic C₁₀₀: 11280 N
Static C₀: 26590 N
