Manufacturer: REXROTH

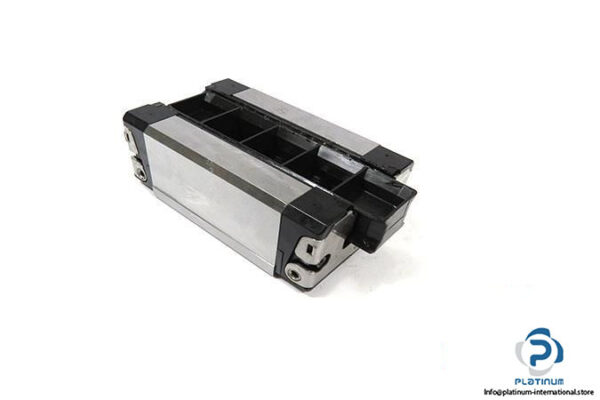

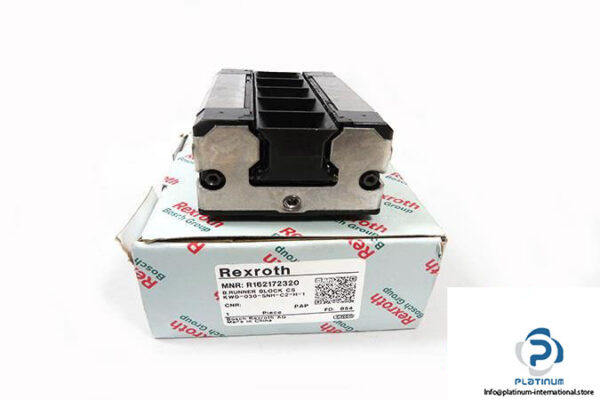

Type: Ball Runner Block SNH
MNR: R1621 723 20

Size: 30 mm
Format: SNH – Slimline, normal, high
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 36500 N
Static Load Capacity C₀ : 48100 N
Dynamic Torsional Moment Load Capacity M_t: 630 Nm
Mt0: 830 Nm
Dynamic longitudinal moment load capacity ML: 440 Nm
Static longitudinal moment load capacity ML0: 580 Nm
Accuracy Class: H – Highly accurate
Preload Class: C2 –Average preload
Dimensions
Width (A): 60 mm
Length (B): 97.7 mm
Height of system(H): 45 mm
Height of block (H₁): 38.35 mm
E1: 40 mm
E2: 40 mm
Admissible Operating Temperature: -10 °C … +80 °C
