Manufacturer: INA
Type: RECIRCULATING BALL BEARING CARRIAGE
Model: KWE25-G3-V0

Size: 25 mm

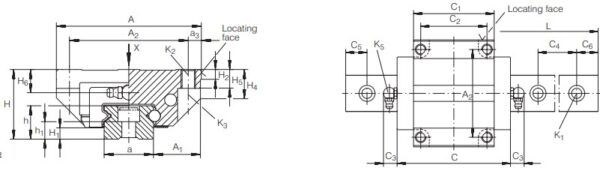

Dimensions:
Height system H: 36 mm
Width carriage A: 70 mm
Overall length carriage C: 80.7 mm
Carriage Height: 29.5 mm
A₂: 57 mm
C₂: 45 mm
Basic Load Ratings:
Dynamic C: 16.2 Nm
Static C₀: 20.9 Nm
Static Moment Rating About:
X axis M_0x: 253 Nm
Y axis M_0Y: 185 Nm
Z axis M_0Z: 185 Nm
Preload: V0
Accuracy Class: G3
