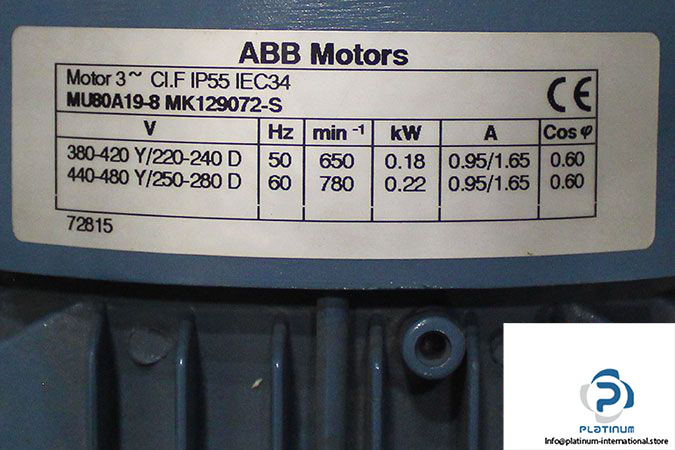

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: MU80A19-8MK129072-S

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Speed: 650 min^-1

Rated Power: 0.18 kW

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Speed: 780 min^-1

Rated Power: 0.22 kW



Rated Current (Star): 0.95 A

Rated Current (Delta): 1.65 A

Power Factor: 0.6

Flange Diameter: 200 mm

Shaft Diameter: 19 mm

Number of Poles: 8

Motor Size: 80A

Protection Class: IP55

Insulation Class: F

Weight: 8.35 kg
