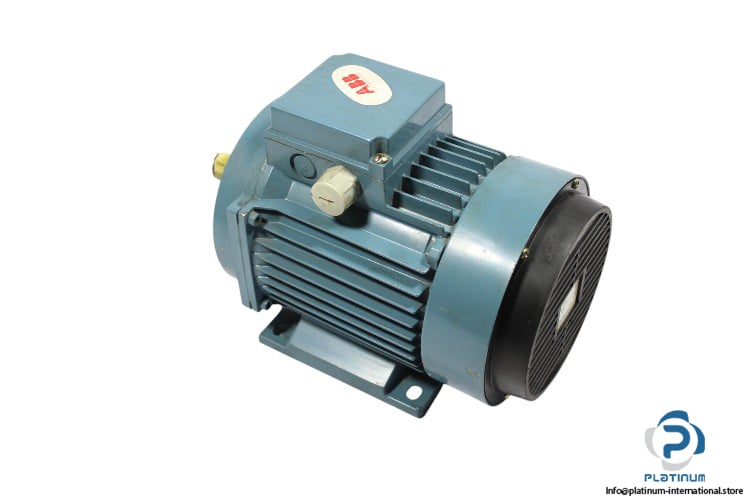

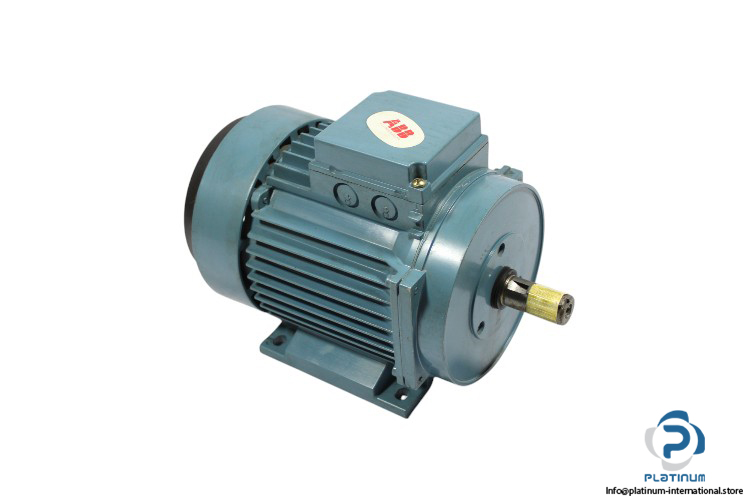

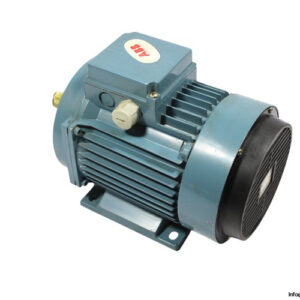

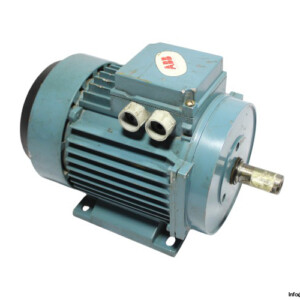

ABB MT90L24-4/8 3-PHASE Electric Motor

ABB 3 PHASE ELECTRIC MOTOR

The ABB 3 Phase Electric Motor (Model: MT90L24-4/8, Part No: MK110647-B) is a high-performance motor designed for reliable and efficient operation in industrial applications. With a rated voltage of 380 V and a protection class of IP55, this motor provides consistent performance with speeds of 1420 / 710 rpm and power ratings of 1.4 / 0.18 kW for various industrial tasks.

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: MT90L24-4/8

Part No.: MK110647-B

Technical Specifications

• Rated Voltage: 380 V
• Rated Frequency: 50 Hz
• Rated Speed: 1420 / 710 rpm
• Rated Power: 1.4 / 0.18 kW
• Rated Current: 3.9 / 1.2 A
• Power Factor: 0.77 / 0.62
• Protection Class: IP55
• Insulation Class: F
