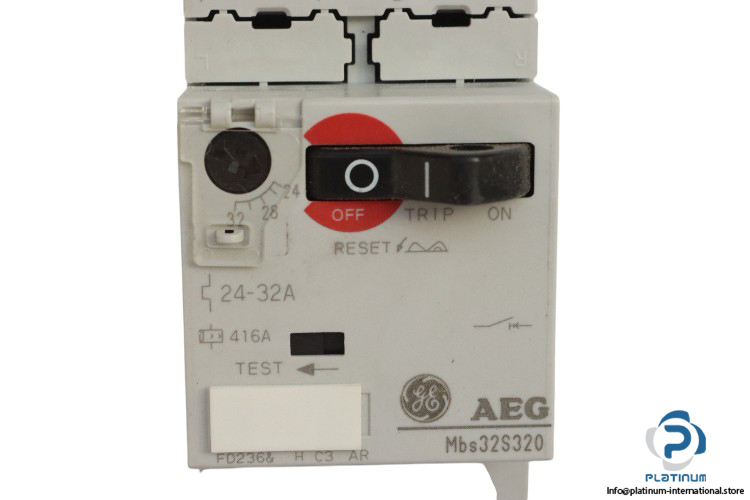

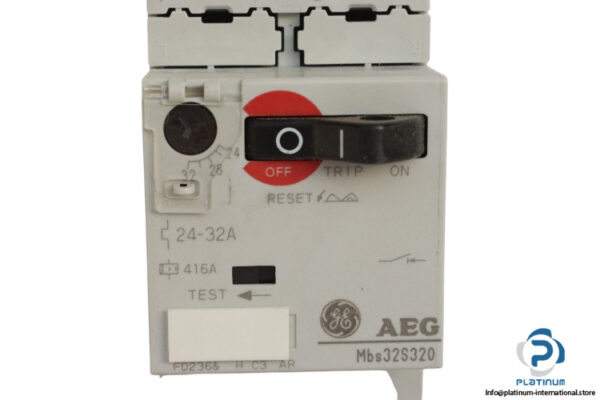

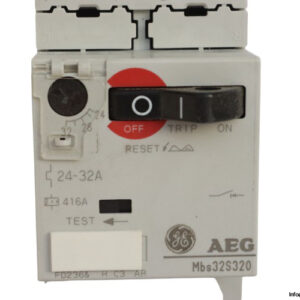

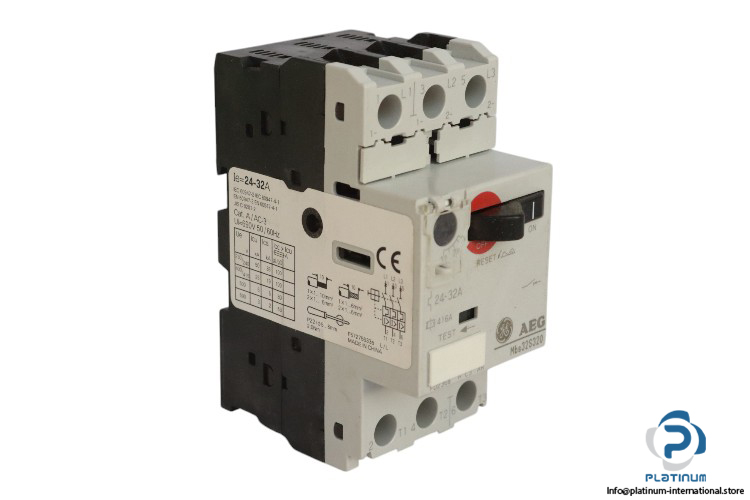

AEG Motor Protection Circuit Breaker – MBS32S320
The AEG MBS32S320 Motor Protection Circuit Breaker is engineered for industrial applications, ensuring the safety of motors and electrical systems. With a high rated insulation voltage of 690V and advanced features, it offers reliable and efficient protection. The circuit breaker is designed for easy installation and operation with a rocker level or rotary drive handle.
🔧 Technical Specifications:
- Manufacturer: AEG
- Type: Motor Protection Circuit Breaker
- Model: MBS32S320
- Rated Insulation Voltage: 690V
- Rated Operating Voltage: 690V
- Rated Impulse Withstand Strength: 8KV
- Rated Frequency: 50/60Hz
- Total Power Loss (P):
- At 0.16 to 25A: 7W
- At 32A: 8.5W
- Max. Operations Per Hour (Motor Start-up): 25 cycles
- Operation Temperature: -25 to 60°C
- Shock-Hazard Protection: Safe from finger touch
- Protection Degree: IP20
- Rated Current: 32A
- Terminal Type: Screws
- Tightening Torque: 2 Nm / 18 Lb.in
- Turning to the Front: 30°
- Turning to the Back: 90°
- Turning to Both Sides: 180°
- Handle Operation: Rocker Level / Rotary Drive
- Dimensions (H x W x D): 90 x 45 x 75/92.5 mm
