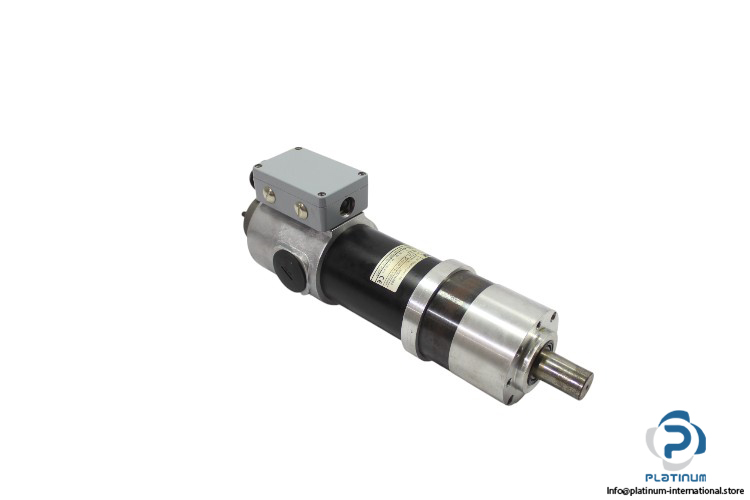

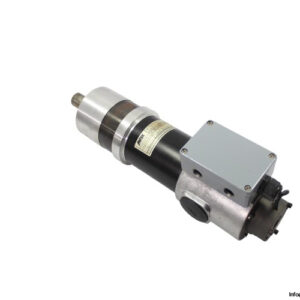

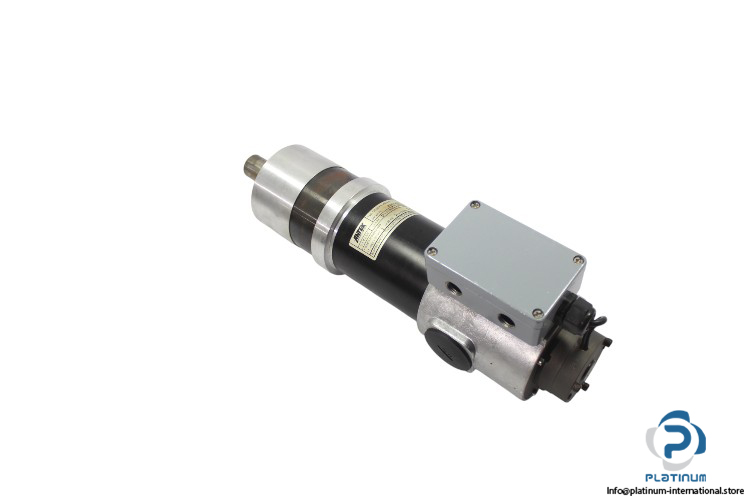

Antek DC90/REG50/2-02 DC Gear Motor
The Antek DC Gear Motor DC90/REG50/2-02 provides efficient and reliable performance with a 3000 rpm speed and 80 VDC voltage. Its planetary gear design with a ratio of 26.52 offers high torque and is suitable for a wide range of industrial applications.
Manufacturer: Antek
Type: DC Gear Motor
Model: DC90/REG50/2-02

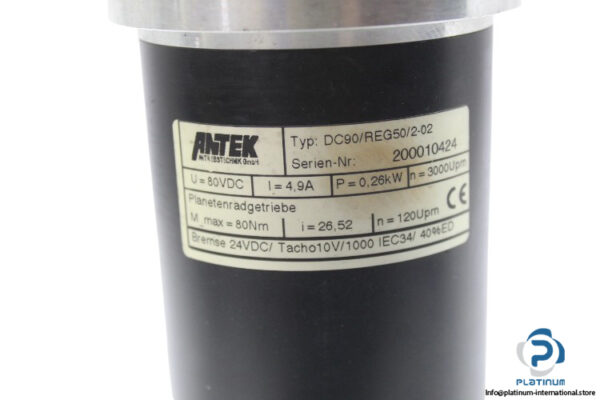

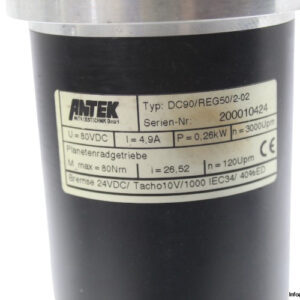

Technical Information:
- Speed: 3000 rpm
- Rated Current: 4.9 A
- Rated Voltage: 80 VDC
- Rated Power: 0.26 kW
- Protection Class: IP44
- Planetary Gear Ratio: 26.52
- Gear Speed: 120 rpm
- Max. Torque: 80 Nm
- Brake Voltage: 24 V DC
