Manufacturer: BALLUFF

Type: Inductive Sensor

Model: BES 516-360-S4-C

Order Code: BES01HY

Size: M18x1

Rated Operating Distance Sn: 8 mm

Operating Voltage Ub: 10 … 30 V DC

Rated Operating Current I_e: 200 mA

Switching Frequency: 600 Hz

Switching Output: PNP

Output Function: Normally Open

Diameter, Length: 18, 83 mm

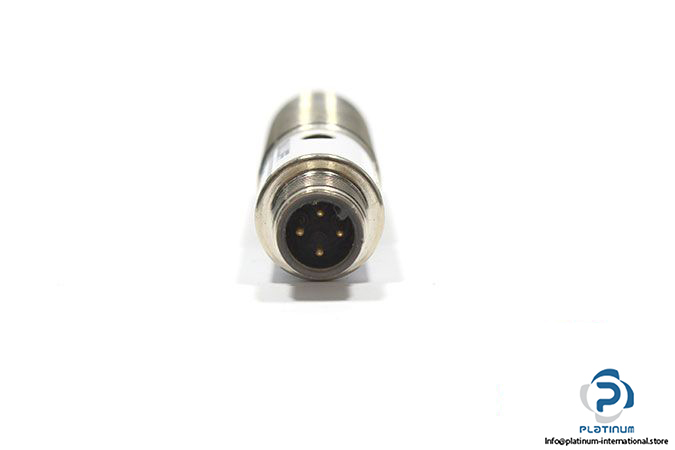

Connection: M12x1-Male, 4-pin

Installation: Non-flush

Housing Material: Brass, Nickel Plated

Protection Class: II

IP Rating: IP68

Ambient Temperature: -25 … 70 °C

Weight: 0.065 kg
