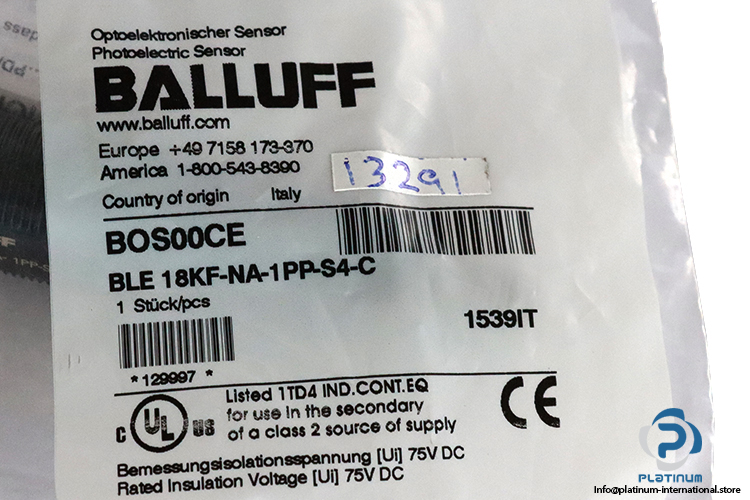

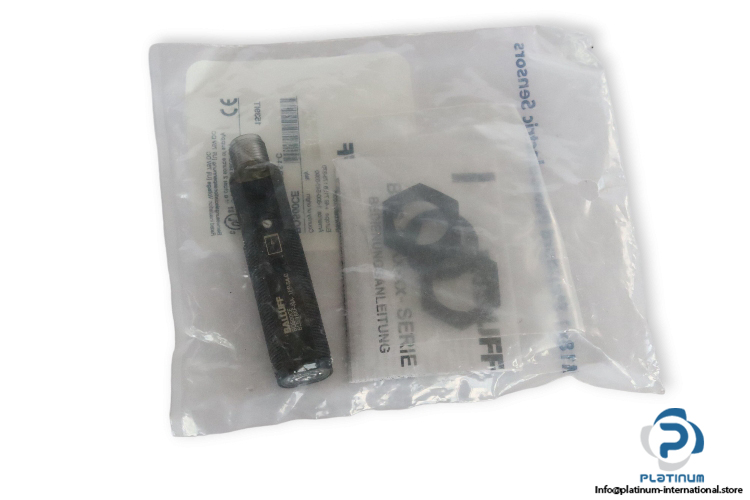

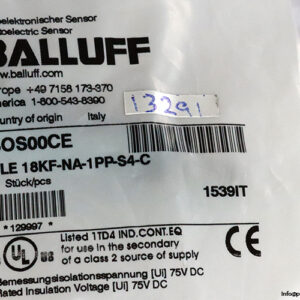

Balluff BOS00CE Photoelectric Sensor

Manufacture: Balluff
Type: Photoelectric Sensor
Model: BOS00CE
MNR: BLE 18KF-NA-1PP-S4-C
Series: 18KF

Sensing Range: 0 … 20 m
No-load current Io max. at Ue: 30 mA
Operating voltage Ub: 10 … 30 VDC
Rated insulation voltage Ui: 75 V DC
Rated operating current Ie: 100 mA
Output type: NPN
Connection method: Connector, M12x1-Male, 4-pin
Housing Material: PBT
Ambient light: max. 5000 Lux
Light type: Infrared
Principle of optical operation: Through-beam sensor (receiver)
Switching function, optical: Light-on, dark-on
Degree of protection (IP): IP67
Ambient temperature: -25 … 55°C
Dimensions: M18 x Length 81.5 mm
Basic standard: IEC 60947-5-2
Style: Flat cylinder, Straight optics
