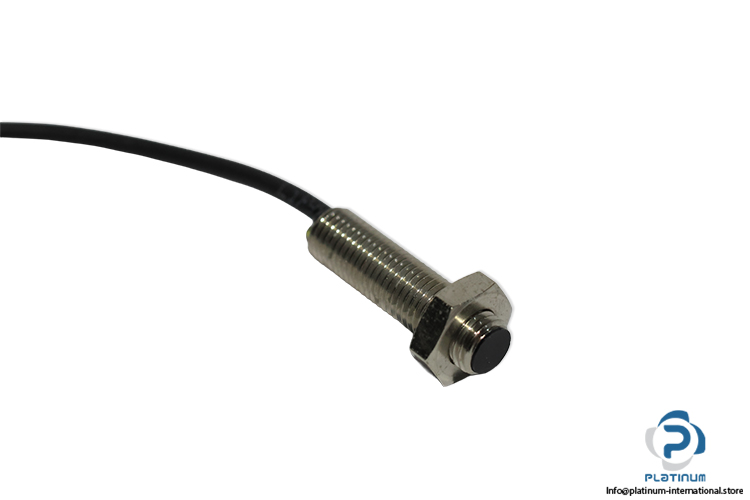

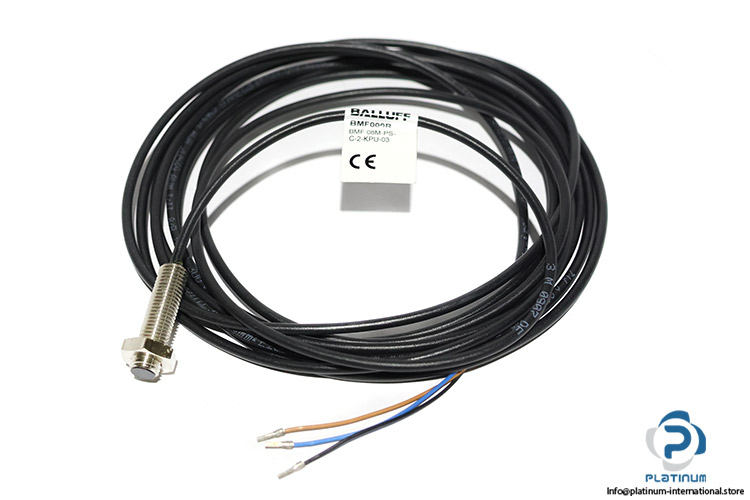

Balluff BMF 08M-PS-C-2-KPU-03 Inductive Proximity Sensor
New
In stock1 unitReady to ship
Inductive Proximity Sensor The BALLUFF BMF 08M-PS-C-2-KPU-03 is an industrial proximity sensor with PNP NC output, brass housing, for reliable automation applications
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

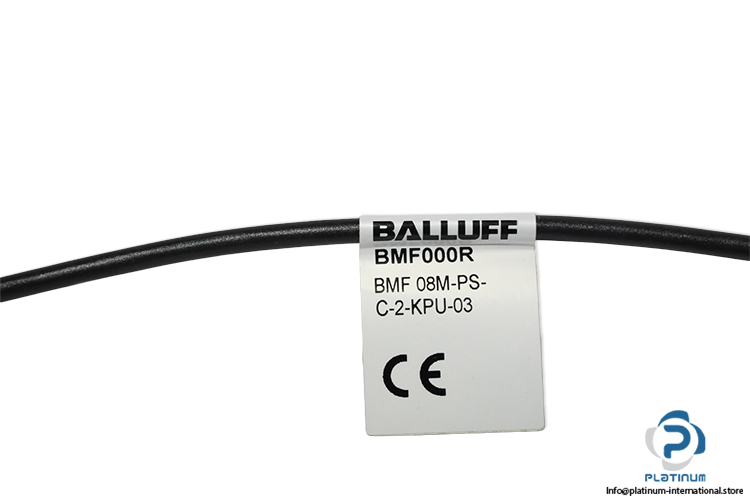

| Order Code | BMF000R |

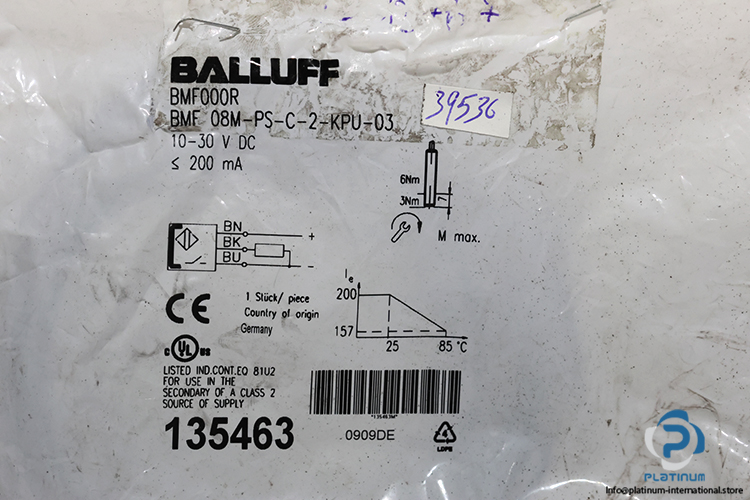

| Ref No | 135463,0909DE |
| Switching output | PNP Normally open (NO) |
| Switching distance | 20 mm |

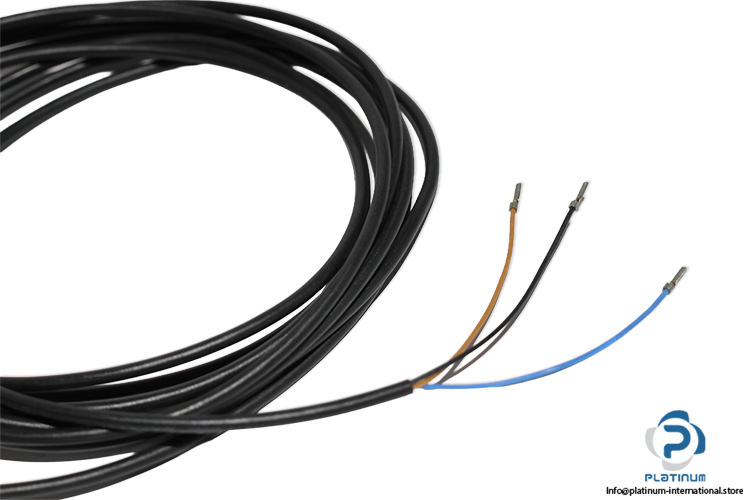

| Connection | Cable, 3.00 m, PUR |
| Operating voltage Ub | 10…30 VDC |
| Rated insulation voltage Ui | 75 V DC |
| Rated operating current Ie DC | 200 mA |
| Utilization category | DC -13 |
| Voltage drop static max. | 3.1 V |
| Ambient temperature | -25…85 °C |
| Approval/Conformity | CE cULus ,Basic standard IEC 60947-5-2 |
| Housing material | brass |
| Material sensing surface | PBTB |
| Dimension | 8 x Length 30.5 mm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100953 |
| Weight | 0,05 |
