Balluff BES00H4 Inductive Sensor

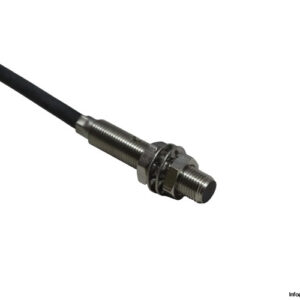

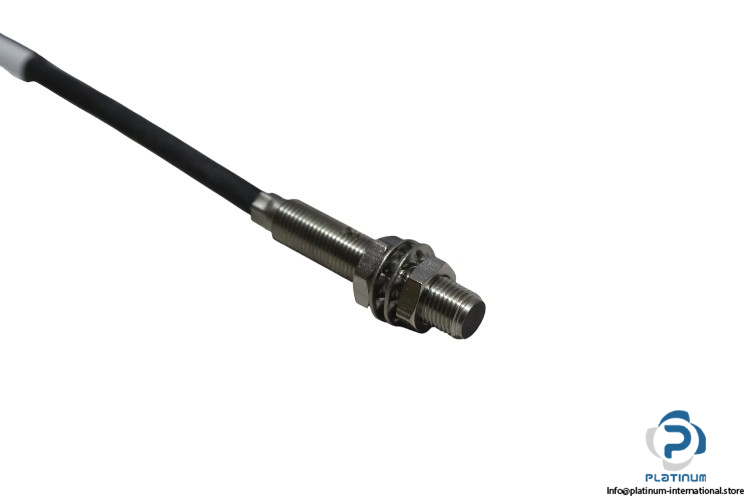

The Balluff BES00H4 (Part No. BES 516-3005-G-E4-C-PU-05) is a rugged and precise inductive sensor designed for reliable object detection in industrial environments. Featuring a stainless steel housing, PNP output, and IP67 protection, this sensor ensures consistent performance even in harsh conditions.
- Manufacturer: Balluff
- Type: Inductive Sensor
- Model: BES00H4

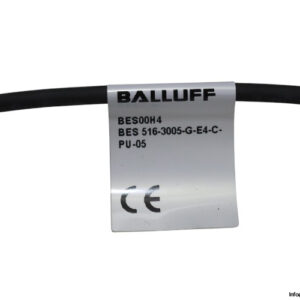

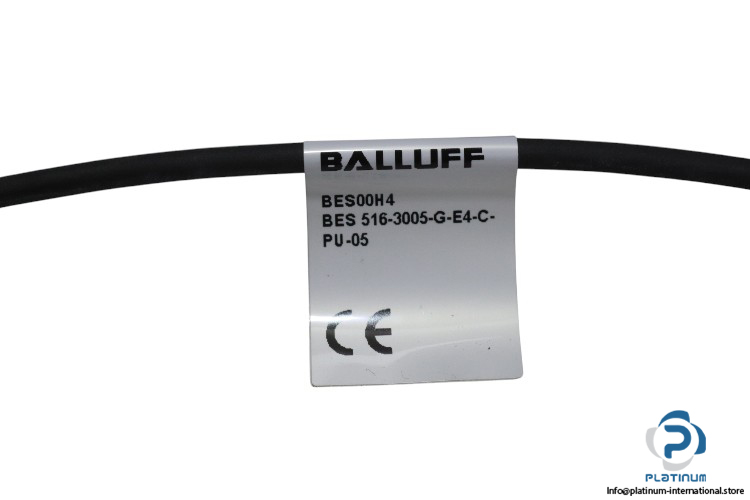

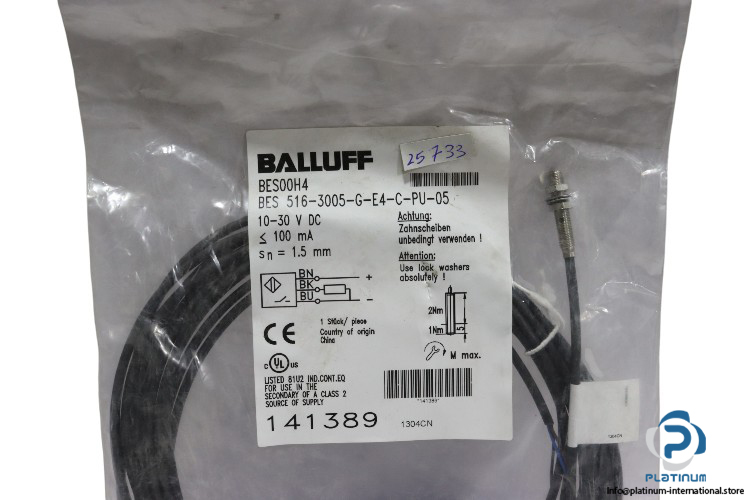

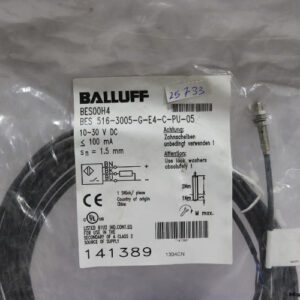

- Part No.: BES 516-3005-G-E4-C-PU-05
Technical Information:
- Operating Current (Ie): 100 mA
- Operating Voltage (Ue): 24.0 V DC
- Rated Insulation Voltage (Ui): 75 VDC
- Rated Short Circuit Current: 100 A
- Switching Function: Normally Open (NO)
- Switching Output: PNP
- Connection Type: Cable
- Cable Jacket Material: PUR

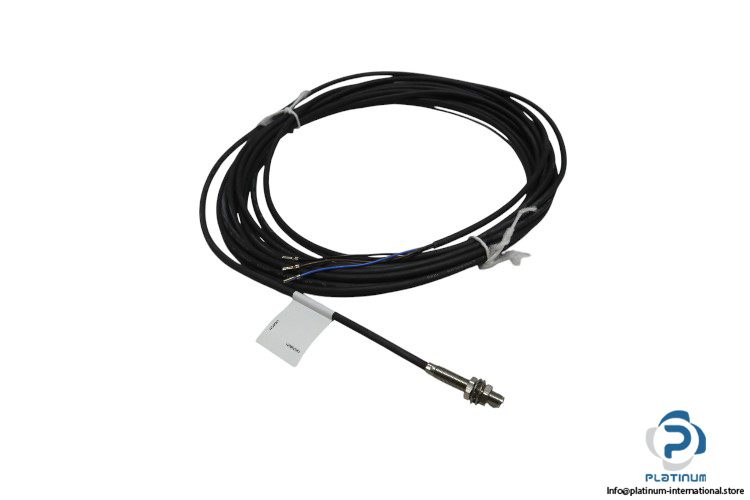

- Cable Length: 5.00 m
- Operating Distance: 1.50 mm
- Degree of Protection: IP67
- Housing Material: Stainless Steel
- Ambient Temperature: -25 to 70 °C
- Tightening Torque: 1 Nm
