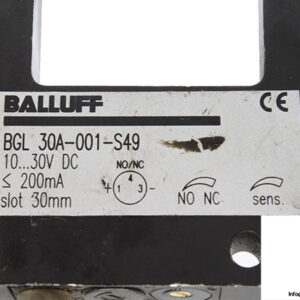

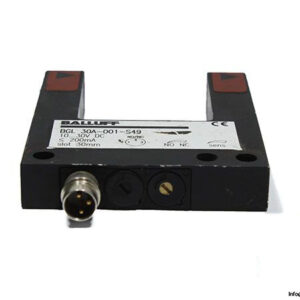

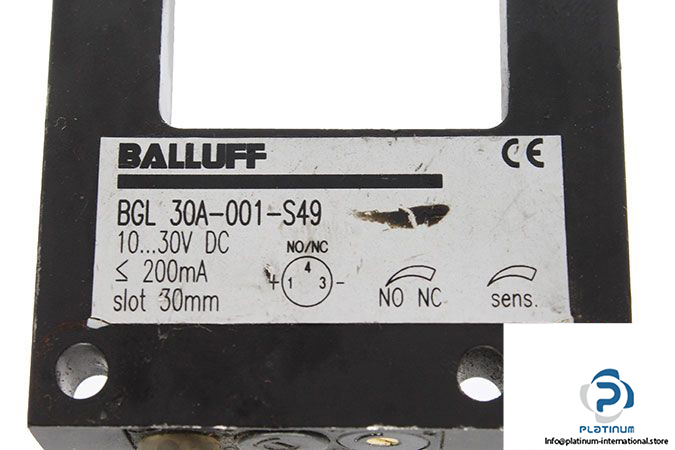

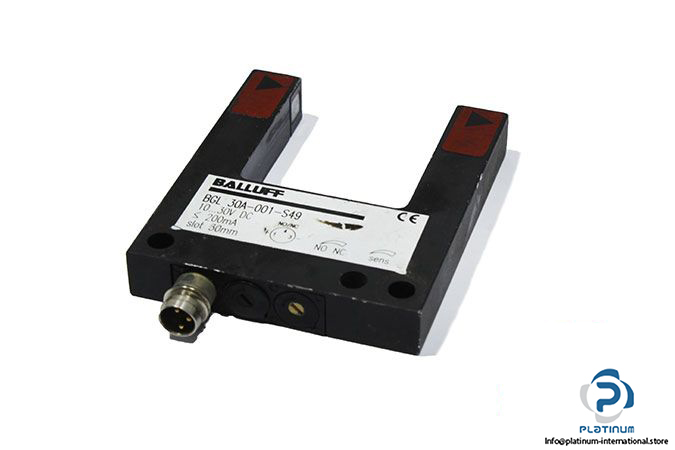

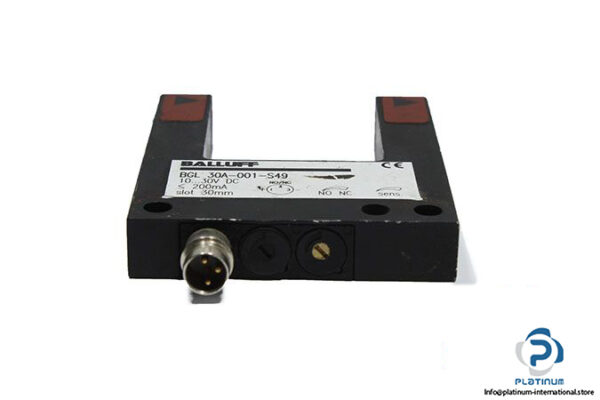

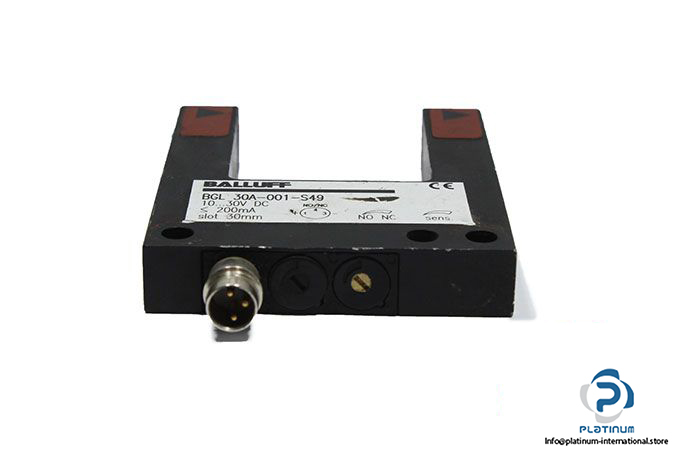

Manufacturer: BALLUFF

Type: Photoelectric Sensor

Model: BGL 30A-001-S49

Sensing Range: 30 mm

Hysteresis: max. 0.1 mm

Switching Output: PNP NO/NC

Load Capacitance: max. 1 µF

No-Load Current: max. 35 mA

Operating Voltage: 10 … 30 VDC

Rated Insulation Voltage: 75 VDC

Rated Operating Current: 200 mA

Rated Operating Voltage: 24 VDC

Ambient Temperature: -10 … 60 °C

Housing Material: Zinc, Die casting

Connection: Connector, M8x1-Male, 3-pole

Fastening Detail: Screw M4

Dimension: 10 X 50 X 68 mm

Weight: 0.03 Kg
