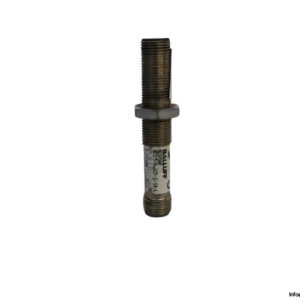

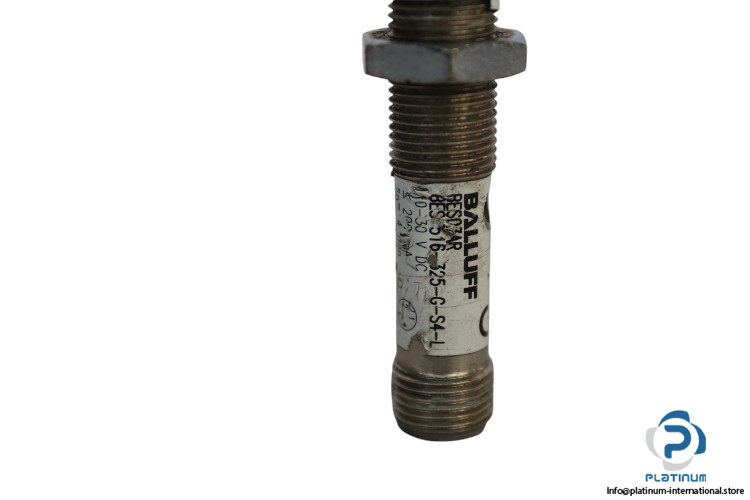

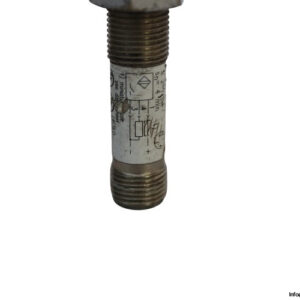

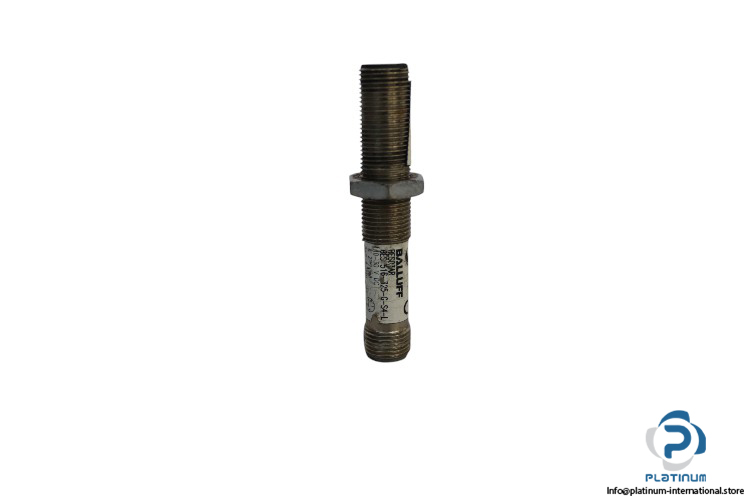

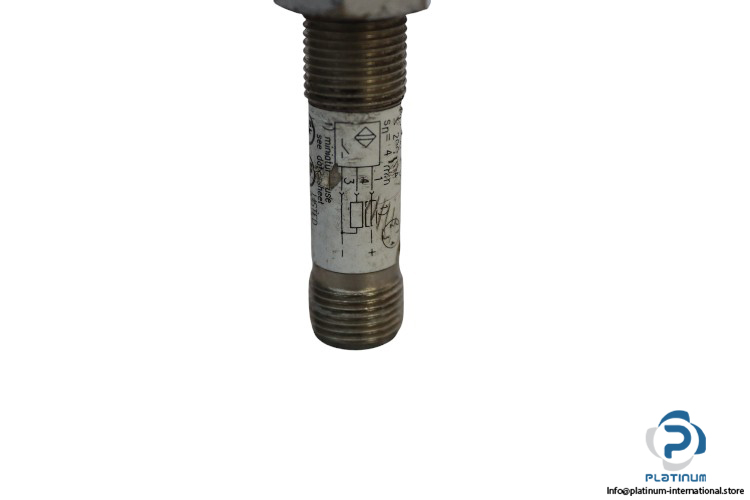

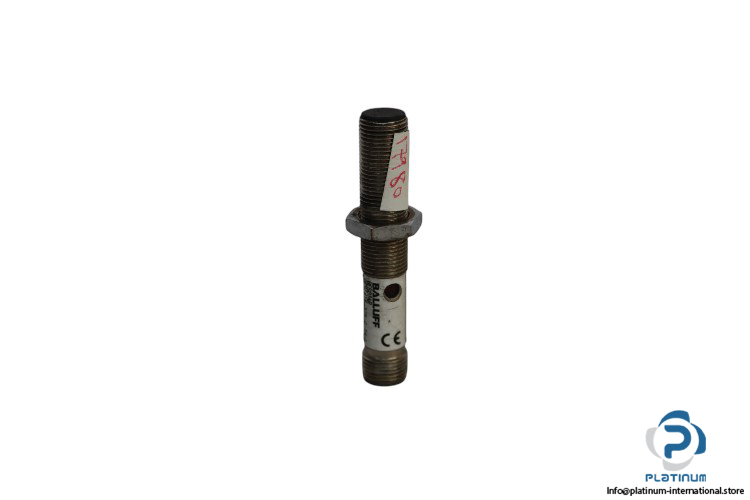

Balluff BES 516-325-G-S4-L Inductive Proximity Switch

BALLUFF BES 516-325-G-S4-L Inductive Proximity Switch

The BALLUFF BES 516-325-G-S4-L is a robust inductive proximity switch designed for precise and reliable object detection in industrial environments. With a sensing range of 4 mm and flush mounting capability, it ensures accurate performance in compact spaces. The sensor operates on a 10 to 30 VDC supply voltage and provides a PNP normally open (NO) switching output. Its durable construction, featuring a nickel-plated brass housing and LCP sensing face, coupled with an IP67 protection rating, makes it suitable for demanding applications.

• Manufacturer: BALLUFF
• Type: Inductive Proximity Switch
• Model: BES 516-325-G-S4-L

Technical Specifications:

• Sensing Range: 4 mm
• Operating Voltage (Ub): 10 to 30 VDC
• Switching Output: PNP Normally Open (NO)
• Installation: Flush mounting
• Switching Frequency: 600 Hz
• Connection: M12x1-Male, 4-pin connector
• Material Sensing Surface: LCP (Liquid Crystal Polymer)
• Housing Material: Nickel-plated brass
• Degree of Protection: IP67
• Ambient Temperature Range: -25°C to 70°C
• Dimensions: Ø 12 x 70 mm
