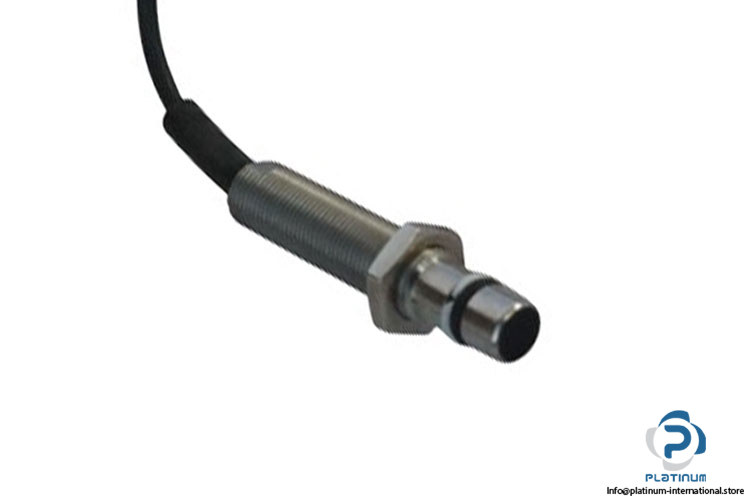

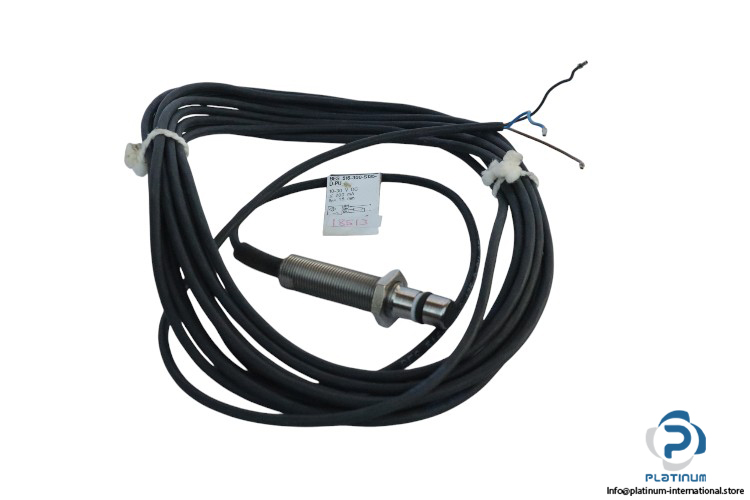

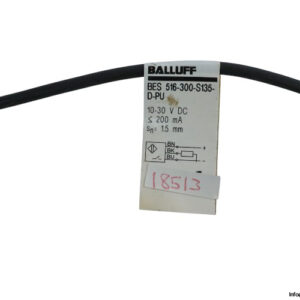

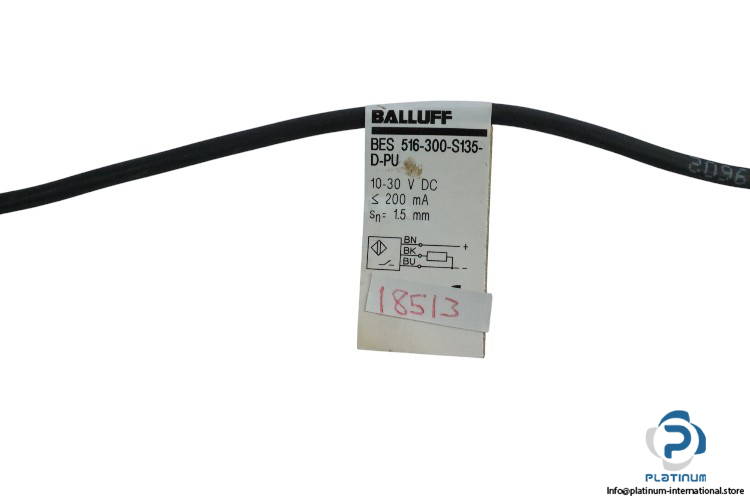

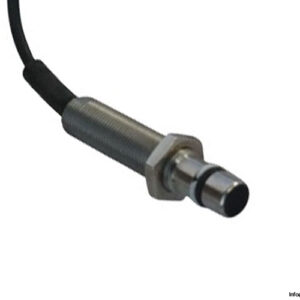

Balluff BES 516-300-S135-D-PU Pressure Rated Inductive Sensor
New
In stock2 unitsReady to ship
Balluff Pressure Rated Inductive Sensor BES516-300-S135-D-PU with 1.5 mm sensing range, 500 bars pressure rating, and flush mounting. PNP electrical design, stainless steel housing, and IP68 rating for demanding environments.
1.5500BalluffbarsFlushHousingInductiveIndustrialIP68M12x1mmMountingNormallyOpenOperatingPNPPressureRangeRatedSensingSensorstainlessSteelvoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Balluff Pressure Rated Inductive Sensor BES516-300-S135-D-PU
Balluff Pressure Rated Inductive Sensor BES516-300-S135-D-PU is designed for precise pressure sensing in demanding environments. With a wide range of features, this sensor is perfect for high-pressure applications where reliability and performance are critical.
- Manufacturer: Balluff
- Type: Pressure Rated Inductive Sensor
- Model: BES516-300-S135-D-PU
Technical Data:
- Sensing Range: 1.5 mm
- Operating Voltage: 10 to 30 V DC
- Electrical Design: PNP
- Switching Output: Normally open
- Current Rating: 200 mA
- Max. Pressure Rating: 500 bars
- Connector Type: Cable, 5M
- Style Housing: M12x1
- Housing: Cylindrical
- Mounting: Flush mounting
- Housing Material: Stainless steel
- Operating Temperature: -25 to 80°C
- IP Rating: IP68
- Dimension (Diameter x Length): 12 x 61 mm
