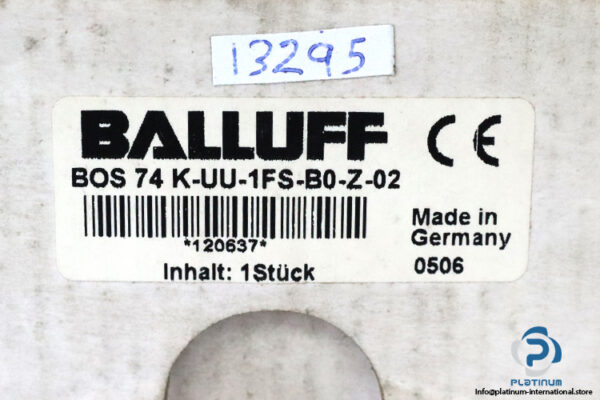

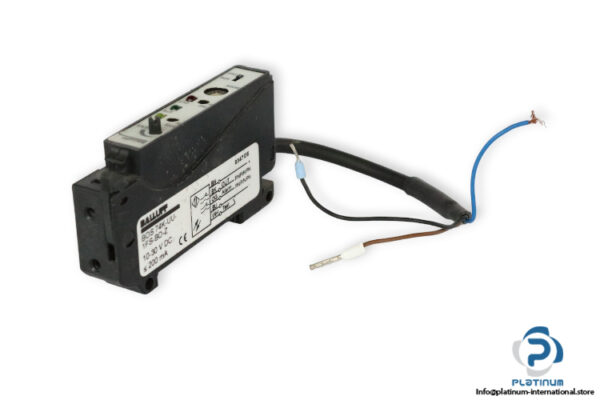

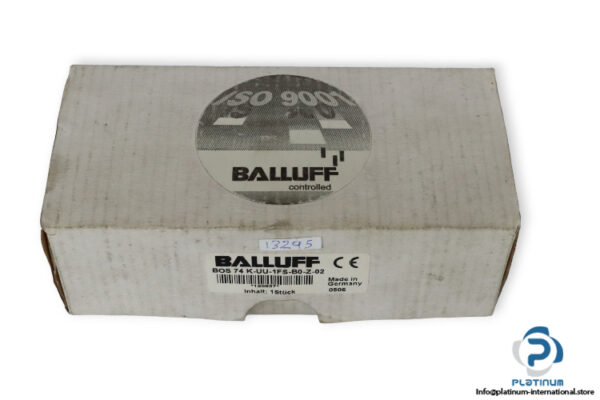

Manufacture: Balluff
Type: Fiber Optic Sensor
MNR: BOS74KUU1FSBOZ02
Series: 74k

Rated operational voltage Ue: 24 V DC
Rated operational current Ie: 200 Ma
Supply Voltage range: 10 … 30 V DC
Switching frequency: 10000 Hz
No-load supply current: <50mA
Ripple: < 10% from UB
Contact: 2 NO/ 2 NC
Electrical design: PNP/NPN
Light: Red light
Output function: light-on or dark-on
Housing material: PBTB
Degree of protection: IP66
Connection: Cable
Type of Cable: PVC
Ambient temperature: -10 … +60°C
Dimensions: 68,5 x 41 x 12 mm
