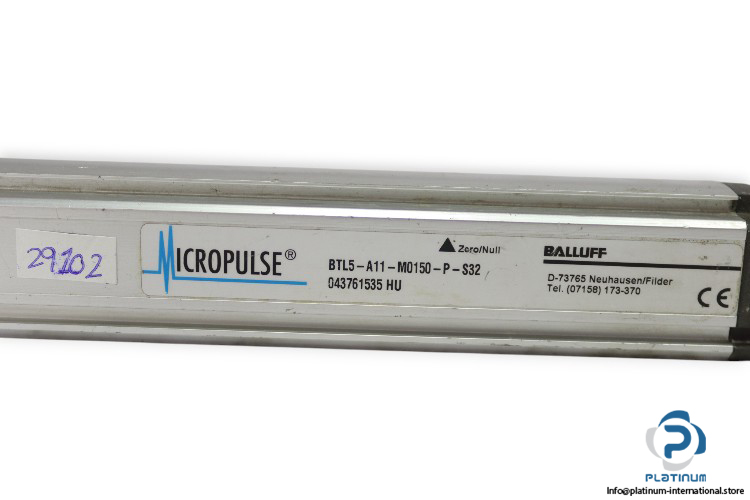

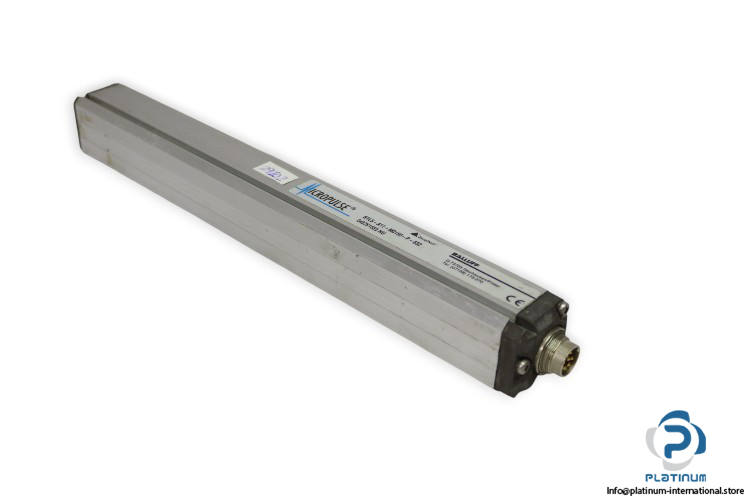

BALLUFF BTL5A11M0150PS32 Magnetostrictive Sensor

The BALLUFF BTL5A11M0150PS32 Magnetostrictive Sensor from the MICROPULSE series provides precise and contactless position measurement for industrial automation and motion control applications. Its durable anodized aluminum housing and IP67 protection ensure reliable operation in harsh environments.

Manufacturer: BALLUFF
Type: Magnetostrictive Sensor
Model: BTL5A11M0150PS32
Serial No.: 043761535 HU
Series: MICROPULSE

Technical Information

• Nominal Length: 150 mm
• Mounting Type: Mounting clamps
• Operating Voltage: 24 V DC
• Output Type: 0 … 10 VDC

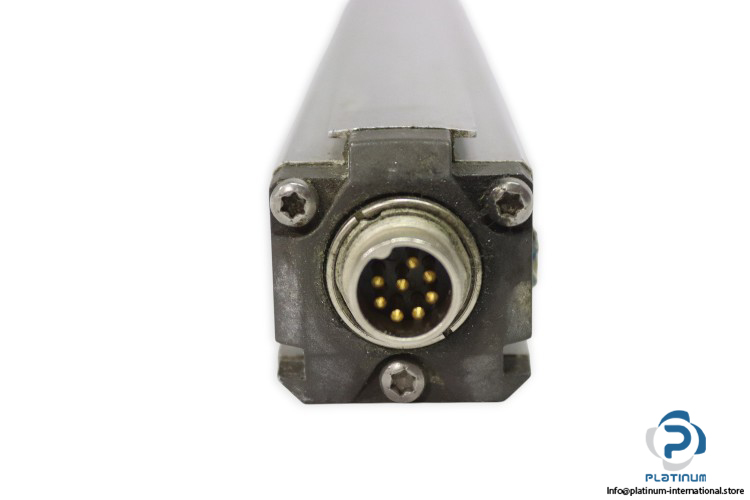

• Connection Type: Connector, 8-pin, Axial
• Protection Class: IP67 with connector
• Connection Version: Axial
• Housing Material: Aluminium, Anodized
• Temperature Range: -40 / 85°C
