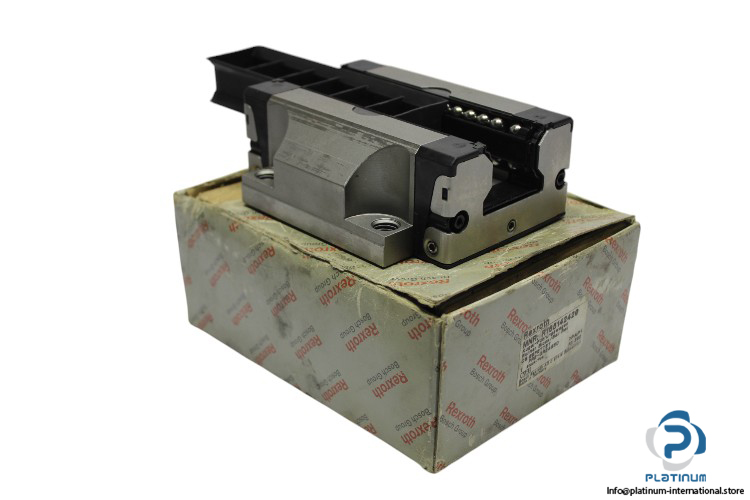

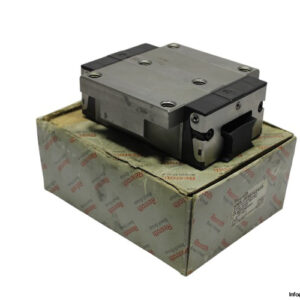

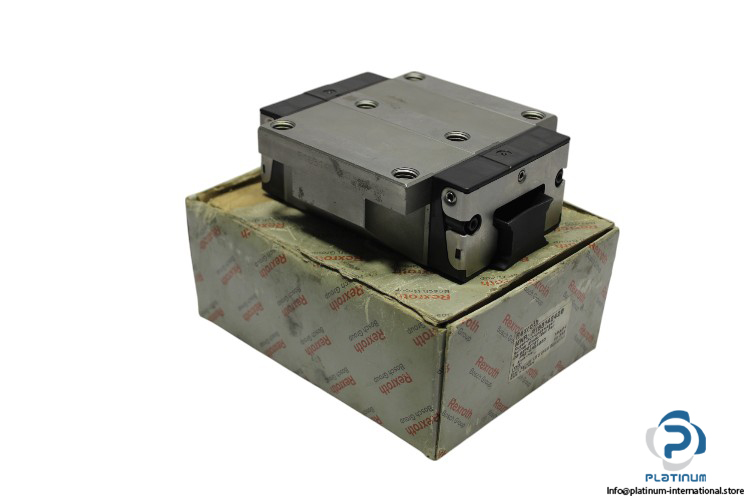

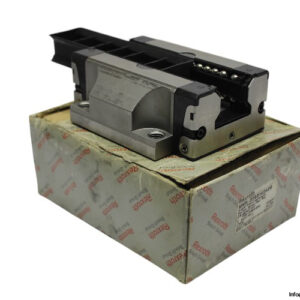

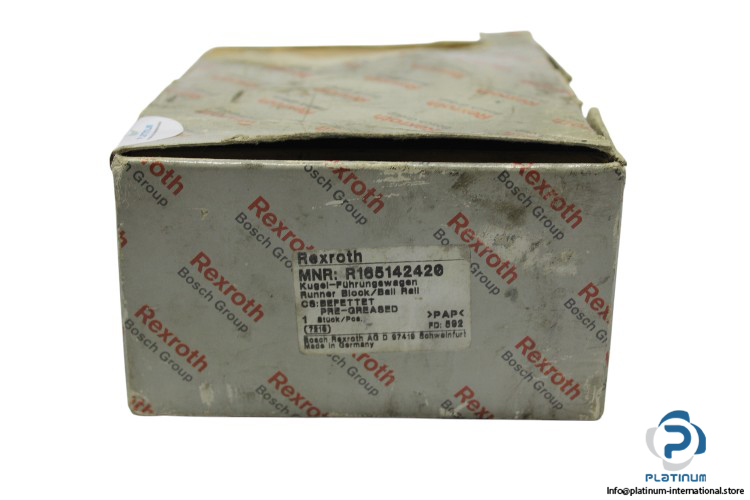

Rexroth R165142420 Ball Runner Block

The Rexroth R165142420 Ball Runner Block is a high-performance linear motion component designed for precision applications. Featuring a flanged design, normal height, and carbon steel construction, this ball runner block ensures exceptional load handling capacity and smooth operation in industrial automation systems.

• Manufacturer: Rexroth
• Type: Ball Runner Block
• MNR: R165142420
• Model: KWD-045-FNS-C2-N-1

Technical Information

• Size: 45 mm

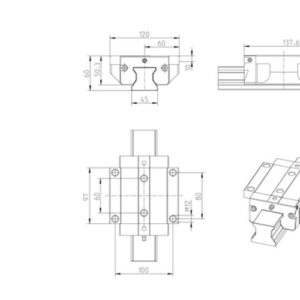

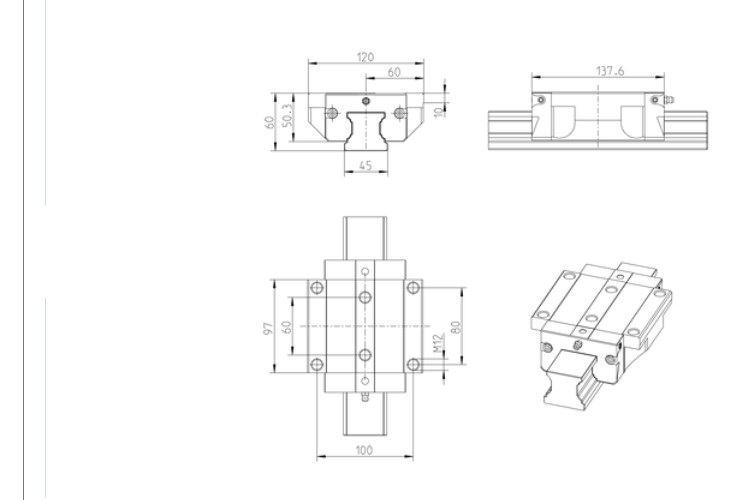

• Dimensions:
• Width (A): 120 mm
• Length (B): 137.6 mm
• Height of System (H): 60 mm
• Height of Block (H1): 50.30 mm
• Format: FNS – Flanged, Normal, Standard Height
• Material (Profiled Rail Systems): Carbon Steel
• Maximum Acceleration Travel (a_max): 500 m/s²
• Maximum Permissible Speed (v_max): 5 m/s
• Dynamic Load Capacity (C50): 109,000 N
• Dynamic Load Capacity (C100): 86,400 N
• Static Load Capacity (C0): 132,000 N
• Dynamic Torsional Moment Load Capacity (M_t): 2,330 Nm
• Static Torsional Moment Load Capacity (M_t0): 3,560 Nm
• Dynamic Longitudinal Moment Load Capacity (M_L): 1,540 Nm
• Static Longitudinal Moment Load Capacity (M_L0): 2,350 Nm
• Accuracy Class: N – Normal
• Preload Class: C2 – Medium Preload
• Admissible Operating Temperature: -10 °C … +80 °C
