Manufacturer: INA SCHAEFFLER
Type: DOUBLE-ROW LINEAR RECIRCULATING BALL BEARING
Series: KUVS
Model: KUVS13-B
Size: 13
Carriage Type: Ball monorail systems KUE, standard carriage, two-row.
Guideway Model: TKVD14

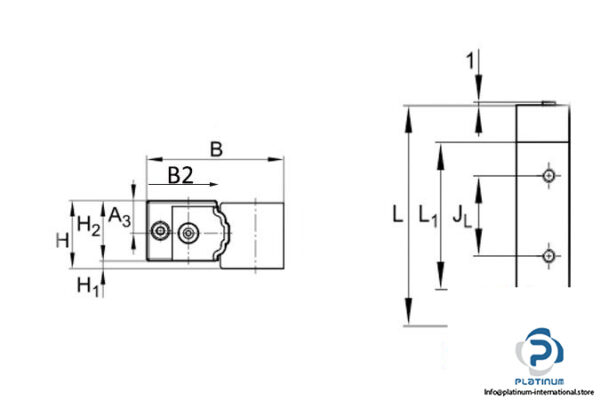

Dimensions
Length ( L ): 71 mm
Width ( B2 ): 18.4 mm
Height ( H2 ): 13.5 mm
Basic Dynamic load rating: 6750 N
Basic Static load rating: 13000 N
Weight: 0.08 kg
