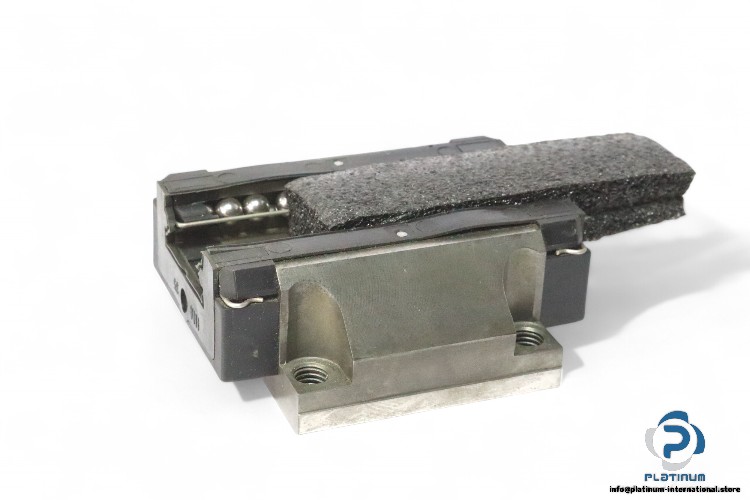

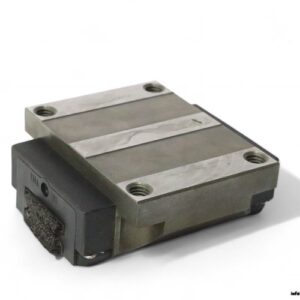

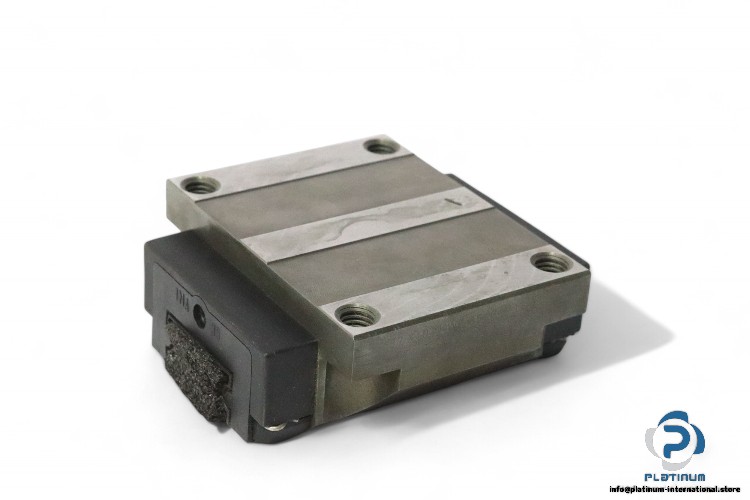

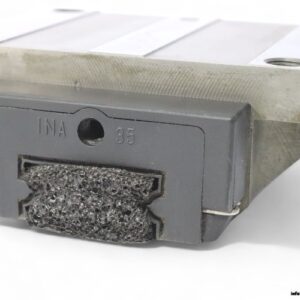

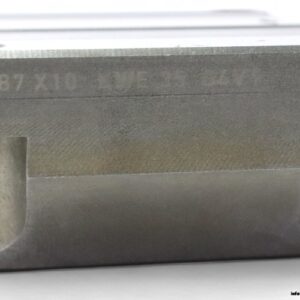

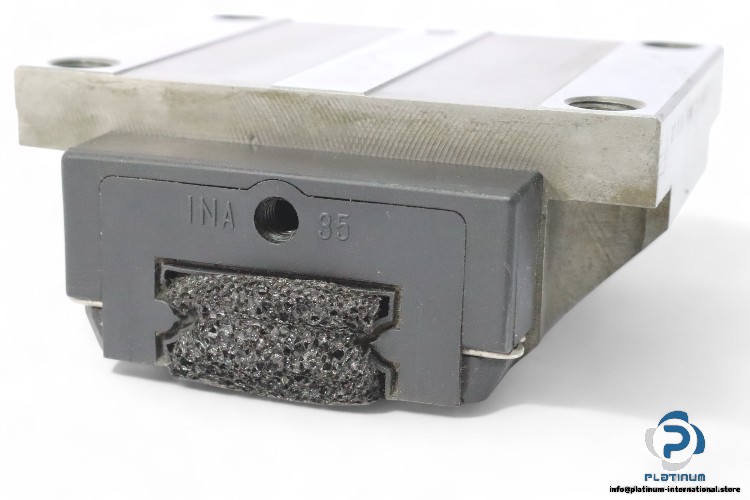

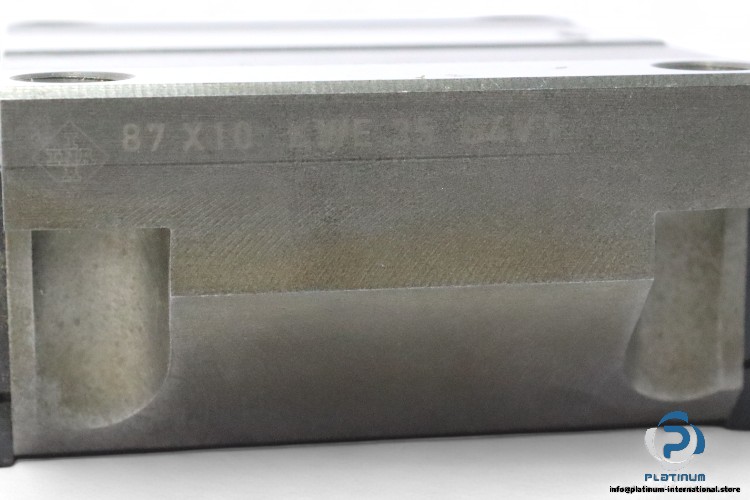

INA KWE35 G4 V1 Linear Guideway Block

In stock2 unitsReady to ship

122,22$

Type: LINEAR GUIDEWAY BLOCK Model: KWE35-G4-V1

Manufacturer:
 INA
SKU
1057385
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Manufacturer: INA
Type: LINEAR GUIDEWAY BLOCK
Model: KWE35-G4-V1

Size: 35 mm

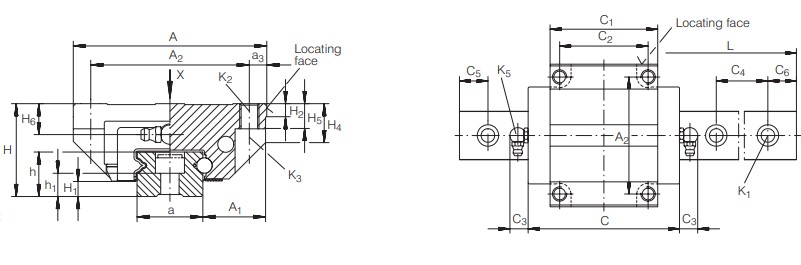

Dimensions:

Height system H: 48 mm
Width carriage A:
100 mm
Overall length carriage C:
106.4 mm
Block height(H-H1): 40 mm
A2: 82 mm
C2: 62 mm
Preload: V1
Accuracy Class: G4
Basic Load Ratings:
Dynamic C:
 28 kN
Static C0: 37 kN
Static Moment Rating About:
X axis M0x:
658 Nm
Y axis M0Y: 450 Nm
Z axis M0Z: 450 Nm
