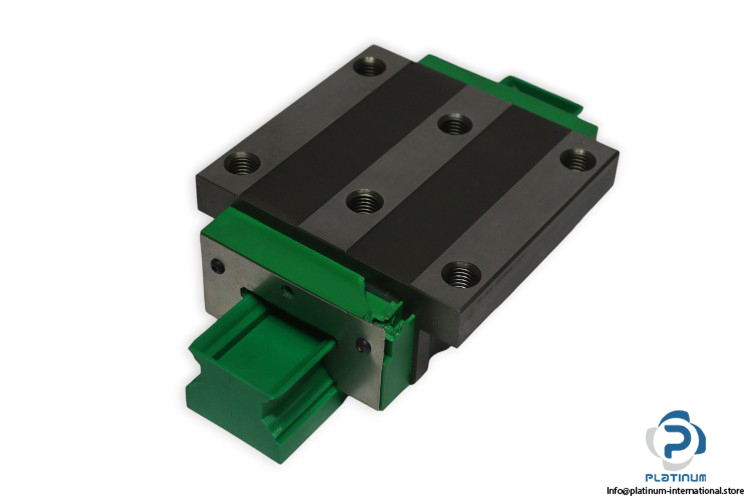

INA KWVE55-B V1.G3 Linear Recirculating Ball Bearing

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWVE55 B V1 G3

Size: 55

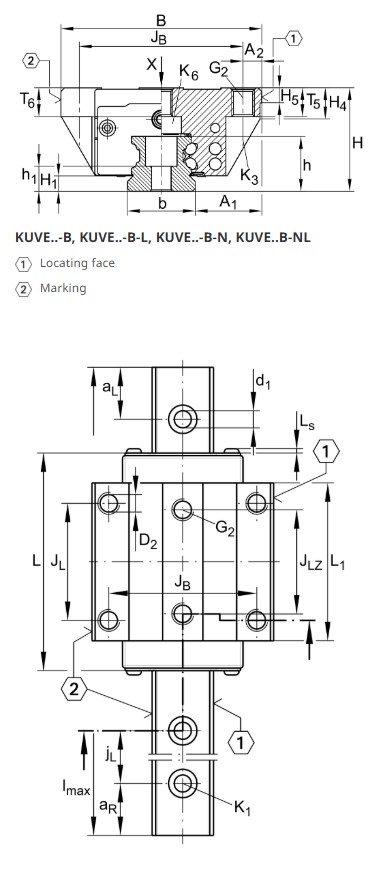

Dimensions
Length ( L ): 173.6 mm
Width ( B ): 140 mm
Height system ( H ): 70 mm
Block Height(H-H1): 56.5 mm
J_B: 116 mm
J_L: 95 mm
Basic Dynamic load rating: 104,000 N
Basic Static load rating: 213,000 N
Version: B
Block Type: Flange Type
Mounting Hole: 6 tapped holes
Guideway Model: KUVE55
Accuracy Class: G3
Carriage Preload: V1
