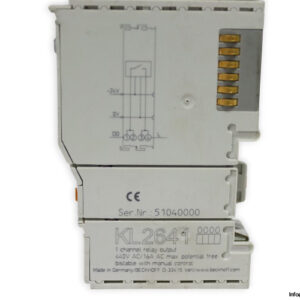

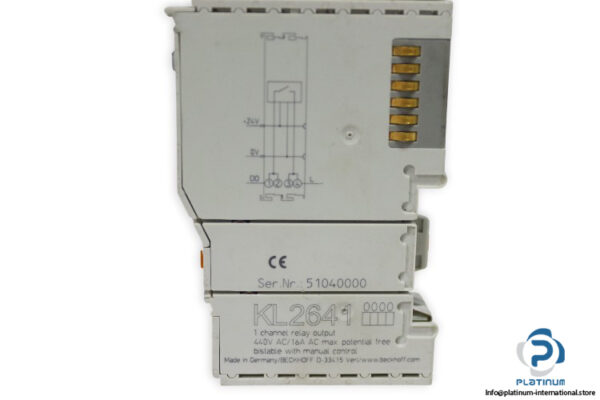

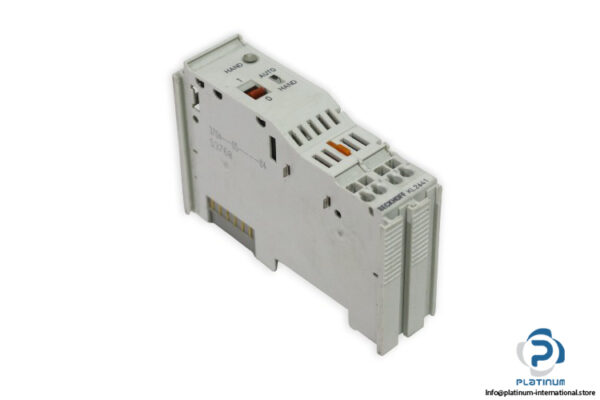

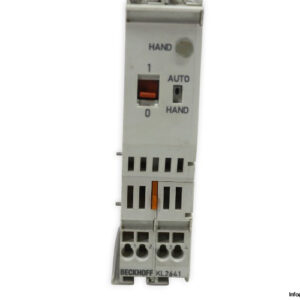

Beckhoff KL2641 Bus Terminal
The Beckhoff KL2641 is a reliable 1-channel relay output bus terminal designed for high-performance switching applications. With robust build quality, wide compatibility, and strong electrical capacity, it ensures dependable operation in industrial automation systems.
Manufacturer: Beckhoff
Type: Bus Terminal, 1-channel relay output
Model: KL2641

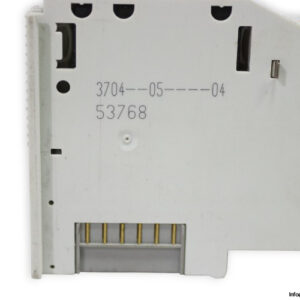

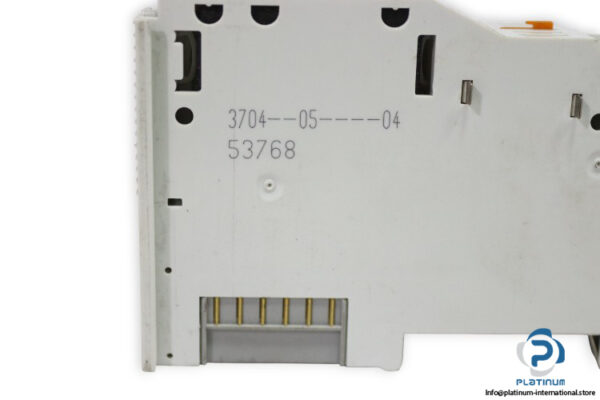

REF NO: 53768
SN: 51040000
Series: KL2xxx
Technical Information
- Number of outputs: 1 x make contact
- Nominal voltage: 230 V AC (max. switching voltage 440 V AC)
- Switching capacity: max. 5 kVA
- Switching voltage max.: 440 V AC (UL: max. 230 V AC)
- Load type: ohmic, inductive, lamp load
- Max. output current: 16 A
- Switching current: max. 16 A AC
- Lamp test, electronic ballast: max. 16 A starting current
- Current consumption power contacts: typ. 65 mA + load
- Current consumption K-bus: typ. 5 mA
- Contact material: AgSnO2
- Bit width in the process image: 2 inputs (status manual, automatic), 2 outputs
- Operating cycles: 10¶
- Operating cycles mech. (min.): 1 x 10¶
- Operating temperature: 0 / 55°C
- Relative humidity: 95%, no condensation
- Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
- EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
- Protection rating / installation position: IP20 / variable
