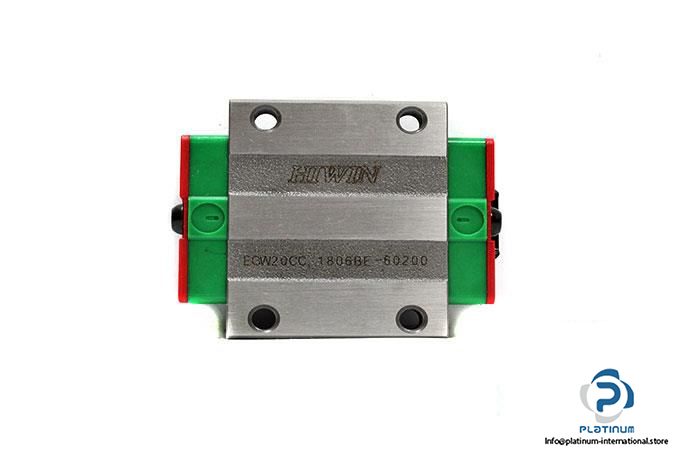

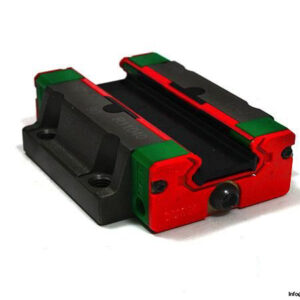

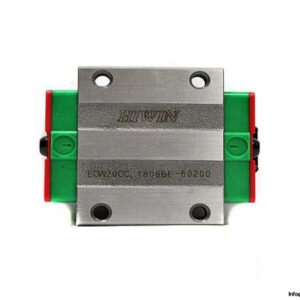

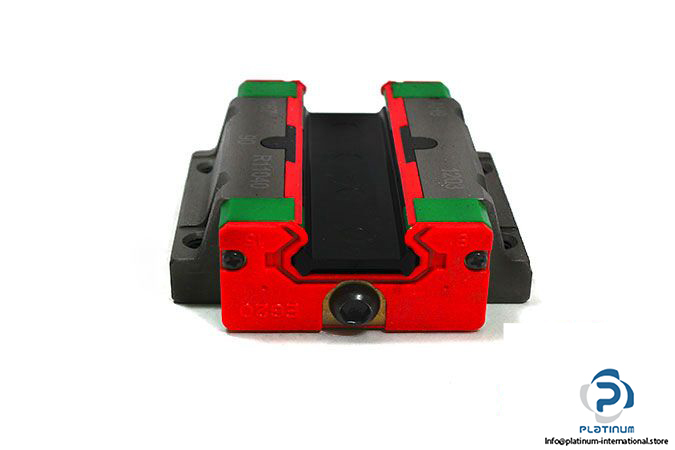

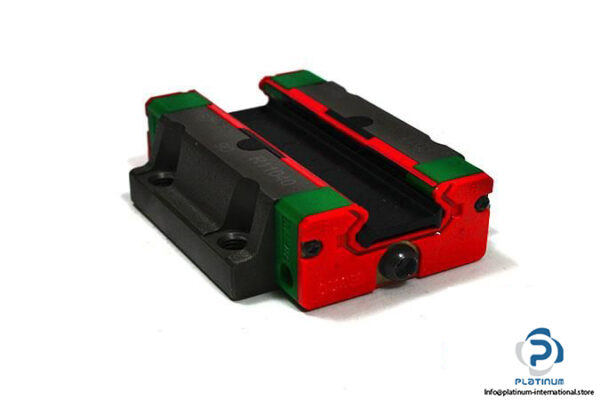

HIWIN EGW20CC LINEAR GUIDEWAY BLOCK
The Hiwin EGW20CC linear guideway block is a precision-engineered flange-type carriage designed for high-load applications. With its compact 20 mm profile and dual-direction mounting flexibility, it ensures durability, accuracy, and smooth motion in demanding linear automation systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW20CC 1806BE-60200
Size: 20 mm
Technical Information
- Block Height: 22 mm
- System Height: 28 mm
- Block Width (W): 59 mm
- Block Length (L): 69.1 mm
- Distances Between Holes: 49 mm, 32 mm
- Thread Size: M6
- Rail Width: 20 mm
- Rail Height: 15.5 mm
- Block Type: Flange
- Load Type: Heavy Load
- Block Mounting Type: From Above or Below
- Basic Dynamic Load Rating: 10.31 kN
- Basic Static Load Rating: 21.13 kN
