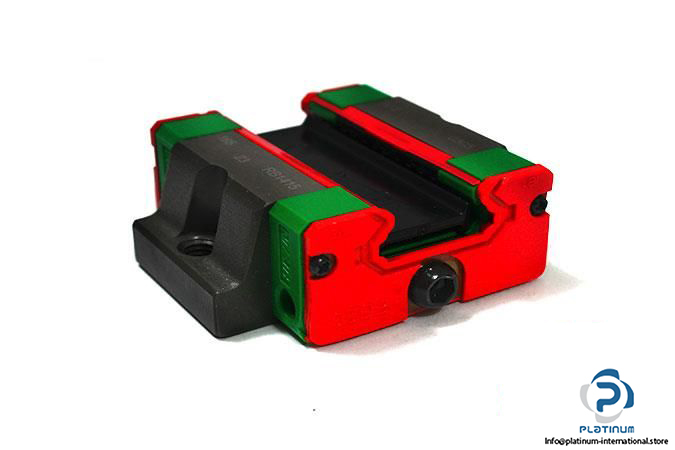

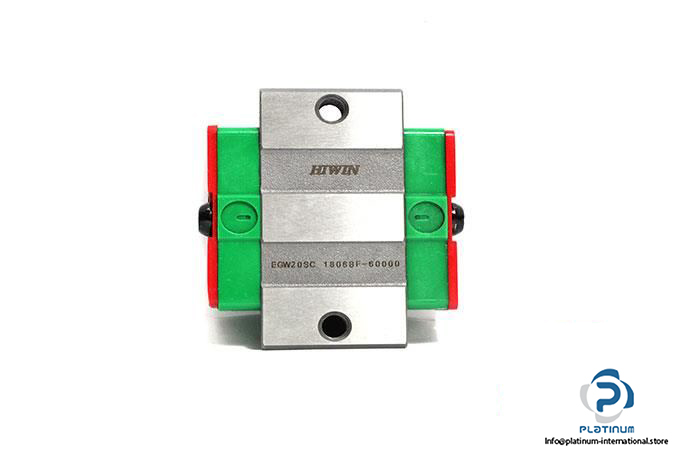

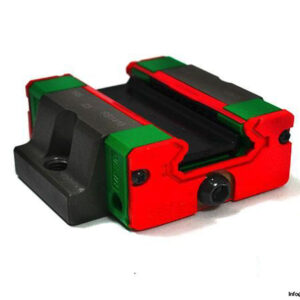

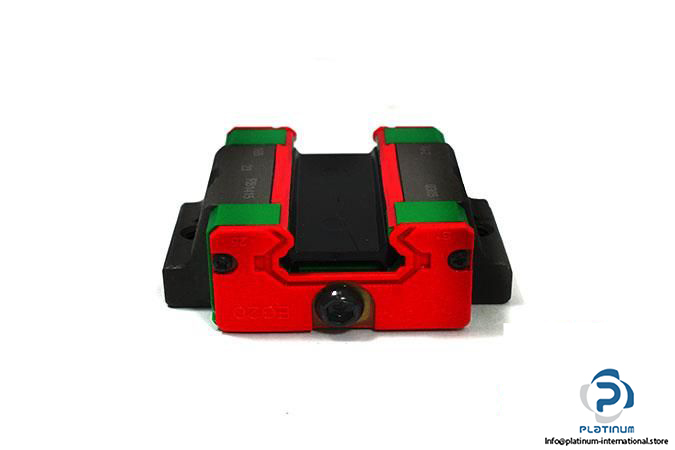

HIWIN EGW 20SC LINEAR GUIDEWAY BLOCK

This high-precision linear guideway block from Hiwin offers smooth motion and high load capacity in a compact flange-type design. Suitable for medium load applications, it features robust construction and flexible mounting from above or below.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW 20SC 18068F-60000

Technical Information

• Size: 20 mm
• Total Height H: 28 mm
• Block Width W: 59 mm
• Block Length L: 50 mm
• Block Height: 22 mm
• Distances Between Holes: 49 mm
• Rail Width: 20 mm
• Rail Height: 15.5 mm
• Thread Size: M6
• Block Type: Flange
• Load Type: Medium Load
• Block Mounting Type: From Above or Below
• Basic Dynamic Load Rating C: 7.23 kN
• Basic Static Load Rating C‚: 12.74 kN
