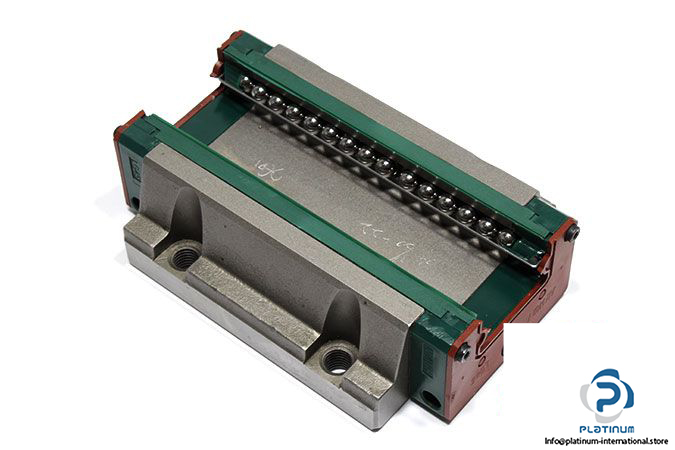

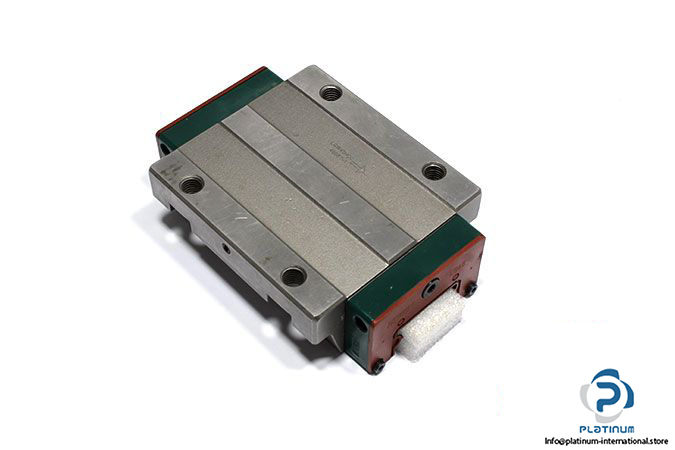

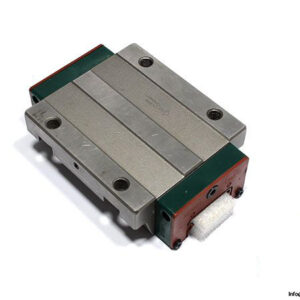

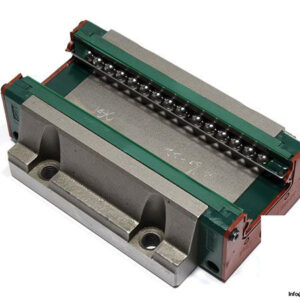

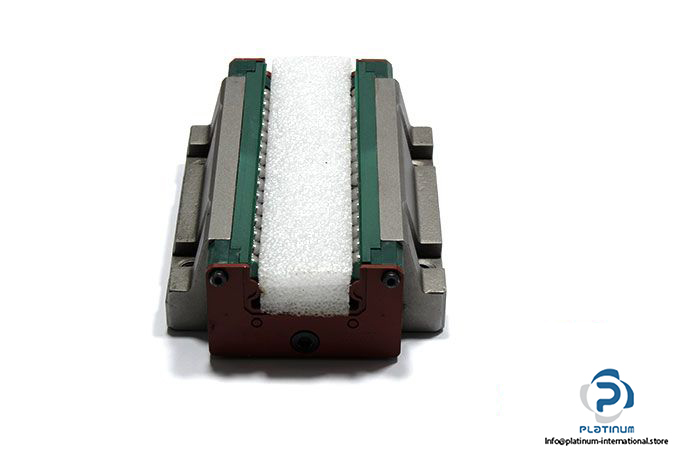

HIWIN LGW45HCC LINEAR GUIDEWAY BLOCK
The HIWIN LGW45HCC is a high-precision linear guideway block engineered for applications requiring high rigidity and heavy load-bearing capabilities. Belonging to the LG Series, this block features a wide flange design and supports top or bottom mounting, making it ideal for super heavy-duty linear motion systems.
Manufacturer: HIWIN
Type: Linear Guideway Block

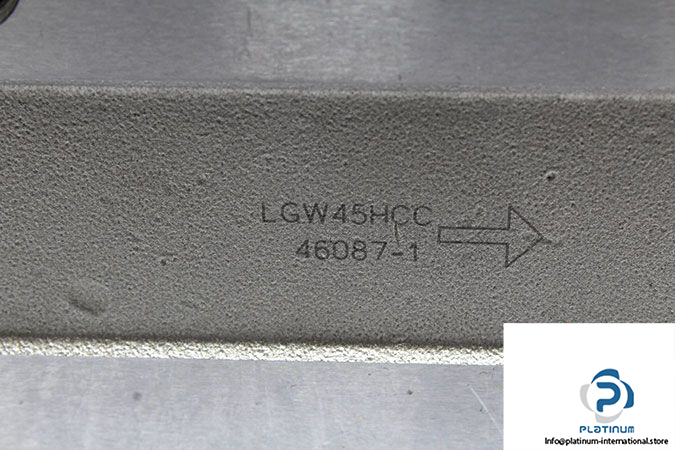

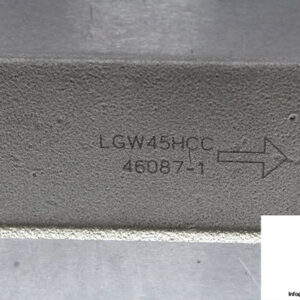

Model: LGW45HCC
Size: 45 mm
Technical Information
- Block Height (H): 50 mm
- Block Width (W): 120 mm
- Block Length (L): 170 mm
- Height System: 60 mm
- Distance Between Holes: 100 mm, 80 mm
- Series: LG Series
- Block Type: W (Flange Type)
- Load Type: H (Super Heavy Load)
- Block Mounting Type: C (Top or Bottom)
- Basic Static Load: 13600 kgf
- Basic Dynamic Load: 8430 kgf
