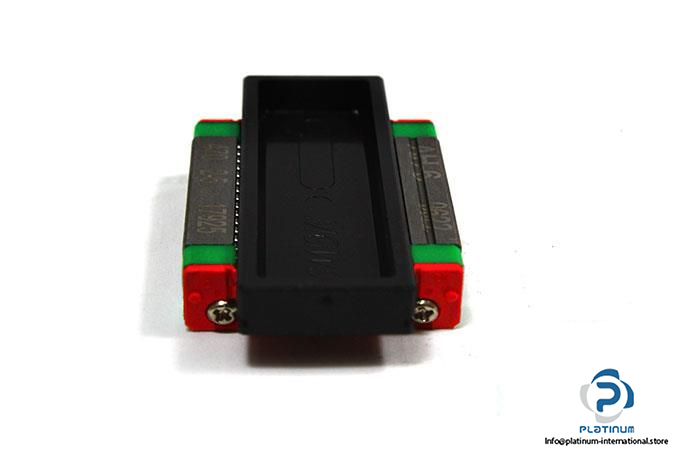

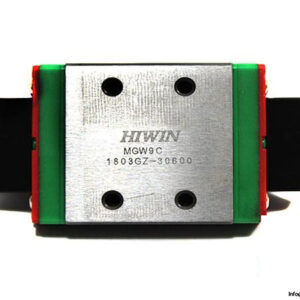

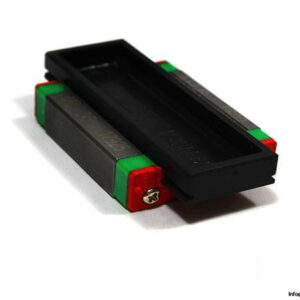

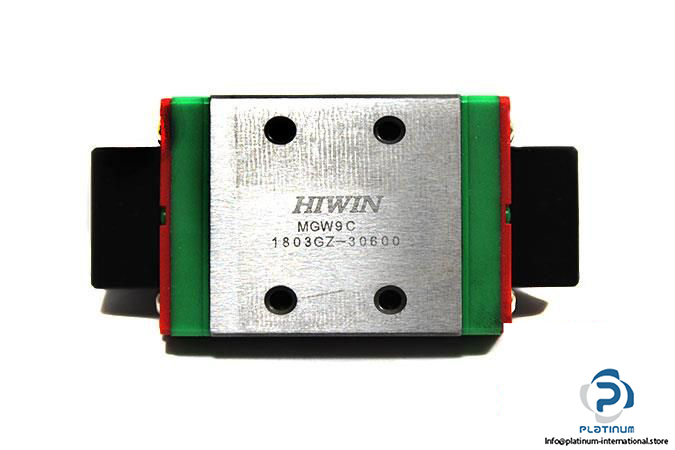

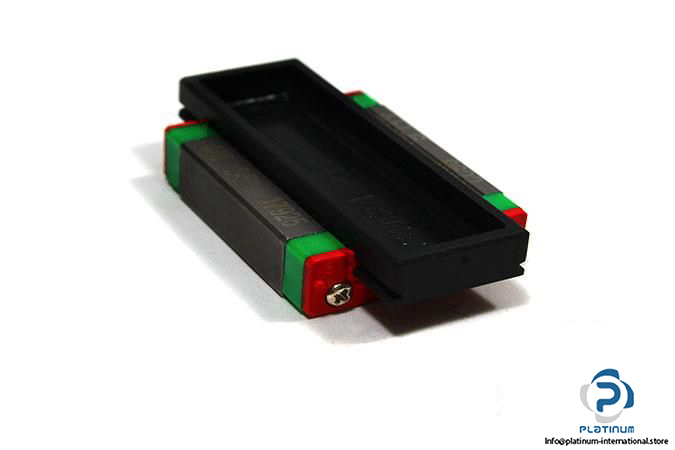

HIWIN MGW9C LINEAR GUIDEWAY BLOCK
This precision-engineered linear guideway block from Hiwin ensures smooth, accurate linear motion for compact automation systems. Designed with a 9 mm rail size and high load ratings, it offers excellent performance in space-constrained environments.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGW9C 1803GZ-30600
Technical Information
- Size: 9 mm
- Block Type: Standard
- Block Height: 9.1 mm
- System Height: 12 mm
- Distance Between Holes: 21, 12 mm
- Block Width: 30 mm
- Block Length: 39.3 mm
- Thread Size: M3 x8
- Rail Width: 18 mm
- Rail Height: 7 mm
- Basic Dynamic Load Rating: 2.75 kN
- Basic Static Load Rating: 4.12 kN
