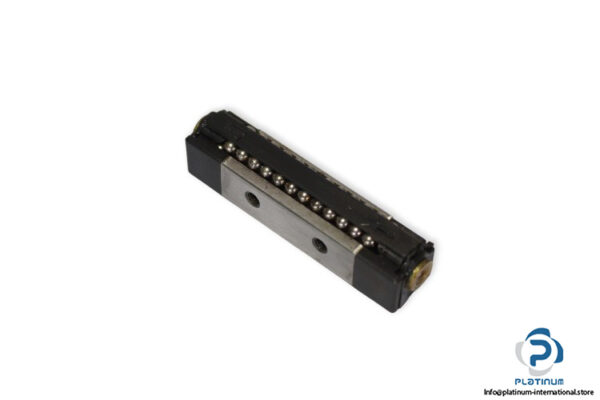

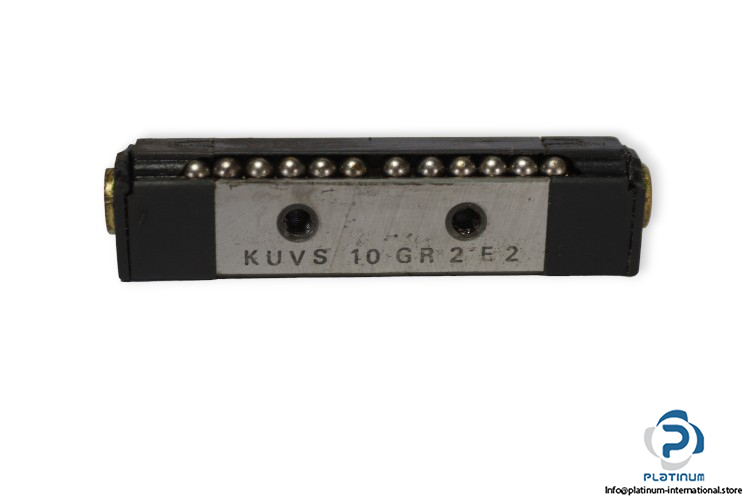

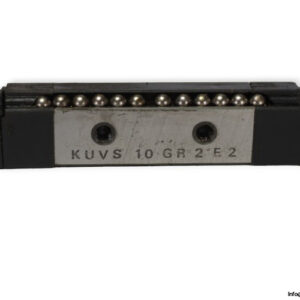

Manufacturer: Schaeffler INA
Type: Linear Recirculating Ball Bearing
Model: KUVS10 GR2 E2
Series: KUVS10-B

Size: 10 mm
Carriage Type: linear recirculating ball bearing units for guideway with raceways on both sides

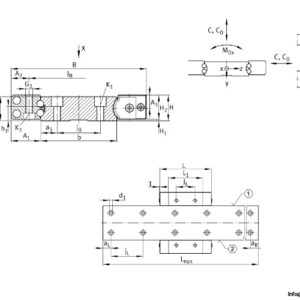

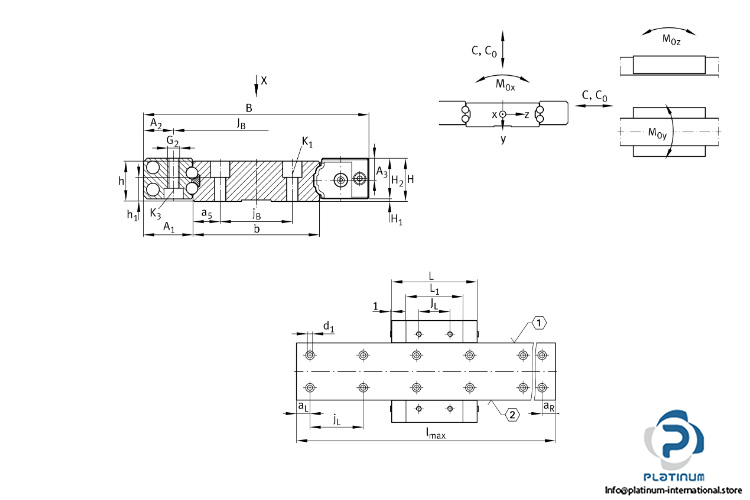

Dimensions
Length linear recirculating ball bearing units: 47 mm
Width system B: 51.6 mm
Height system H: 11 mm
Max. length rail l_max: 1.96 mm
Basic Dynamic load rating: 5700 N
Basic Static load rating: 10600 N
Static Moment Rating About:
X axis M_0x: 203 Nm
Y axis M_0Y: 51 Nm
Z axis M_0Z: 51 Nm
