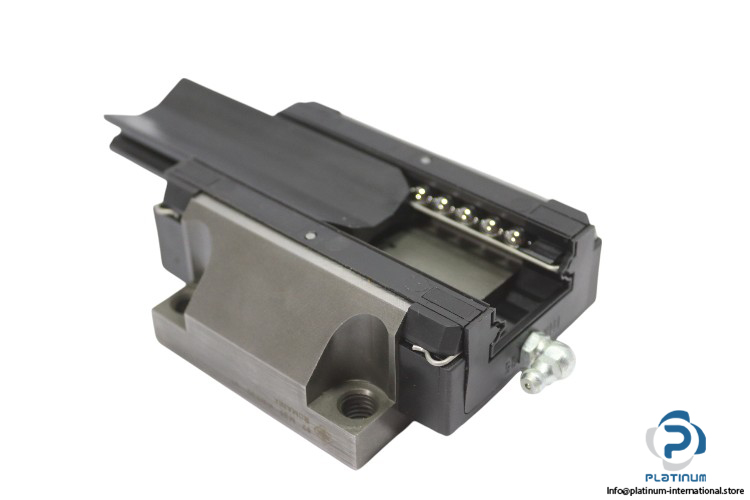

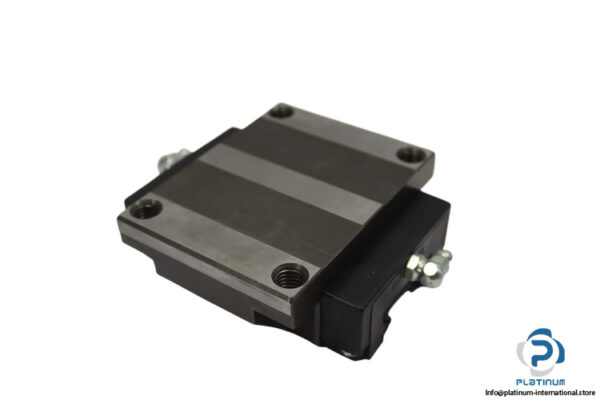

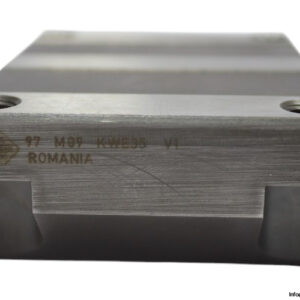

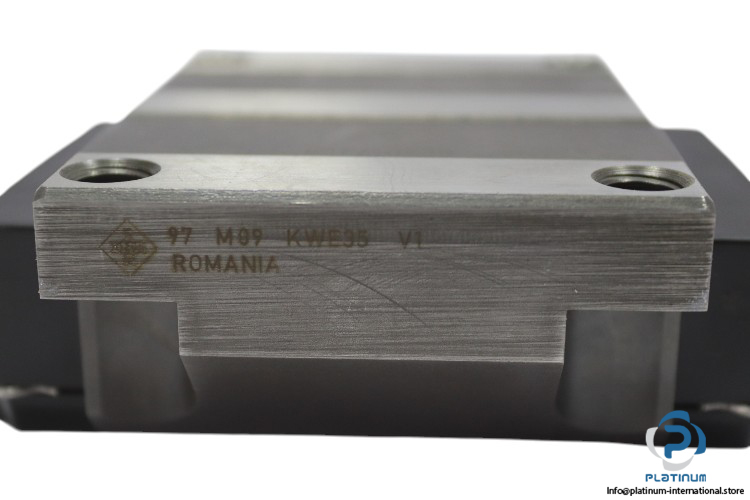

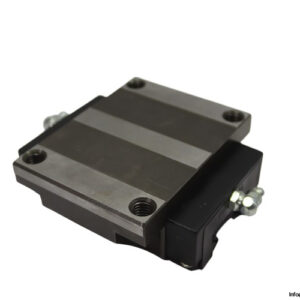

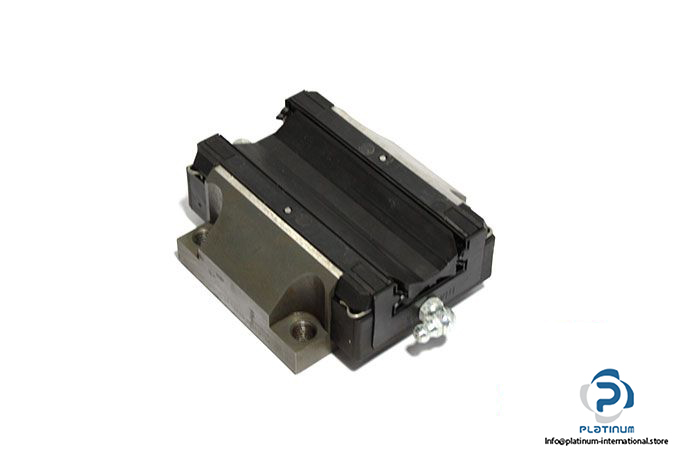

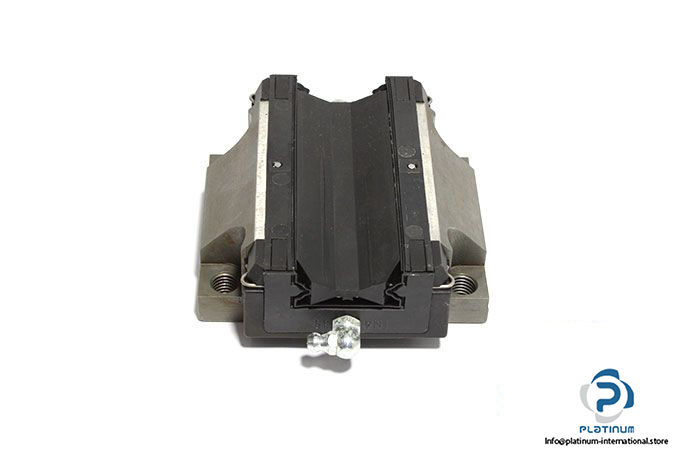

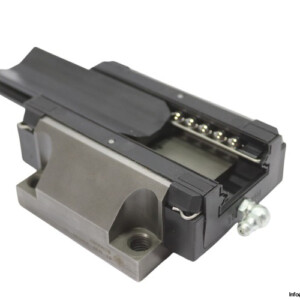

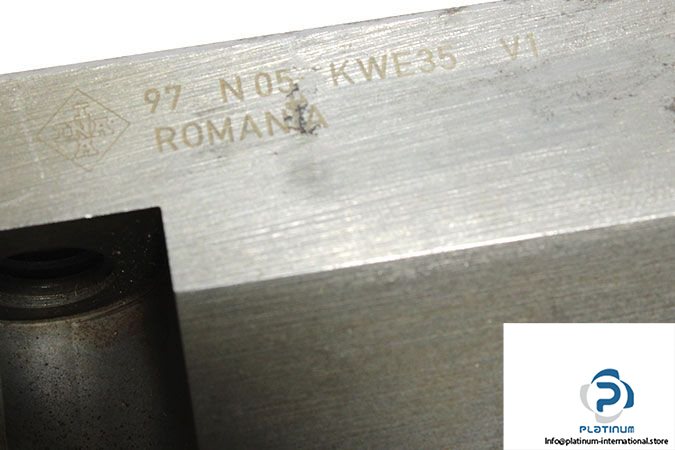

INA KWE35 V1 Recirculating Ball Bearing Carriage
The INA KWE35 V1 Recirculating Ball Bearing Carriage is designed for high-precision and high-load applications, offering excellent dynamic and static load capacities along with reliable performance in linear motion systems.
Manufacturer: INA
Model: KWE35 V1
Type: Recirculating Ball Bearing Carriage

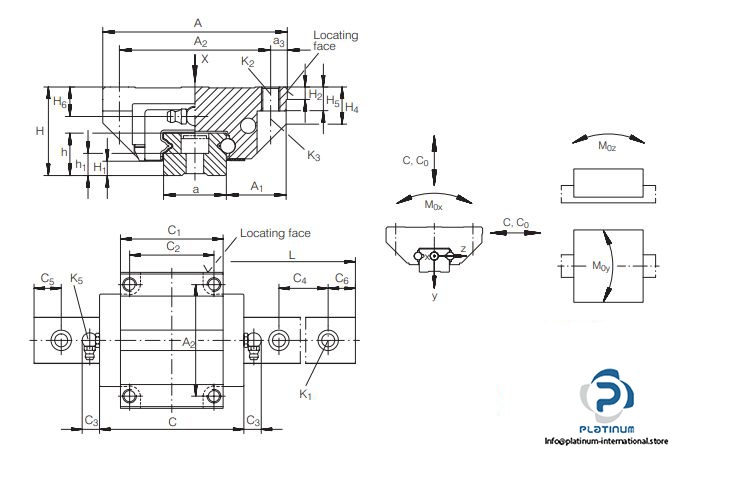

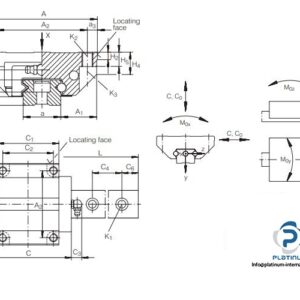

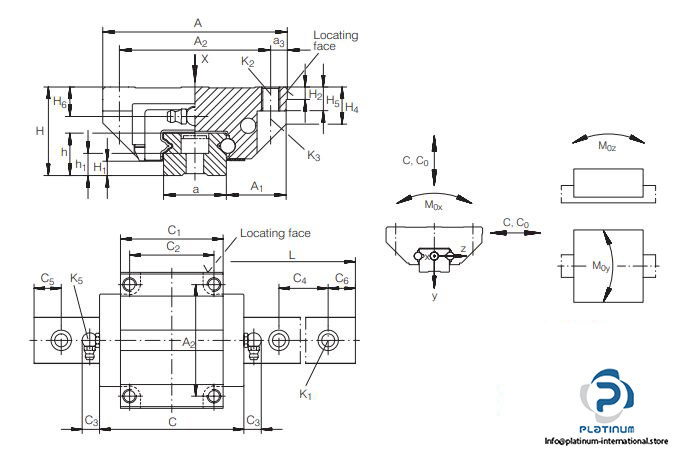

Technical Information:
- Size: 35 mm
- Height System H: 48 mm
- Width Carriage A: 100 mm
- Block Height: 40 mm
- Overall Length Carriage C: 106.4 mm
- Dynamic Load Capacity (C): 28 kN
- Static Load Capacity (C0): 37 kN
- Static Moment Rating About:
- X Axis M0x: 658 Nm
- Y Axis M0Y: 450 Nm
- Z Axis M0Z: 450 Nm
- Preload: V1
