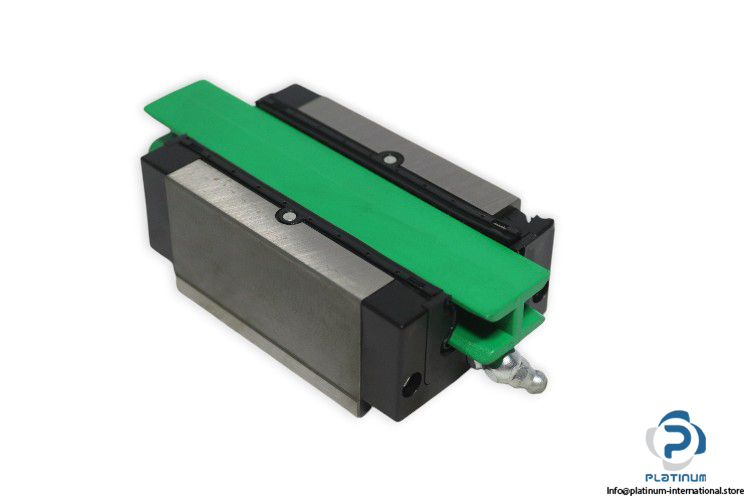

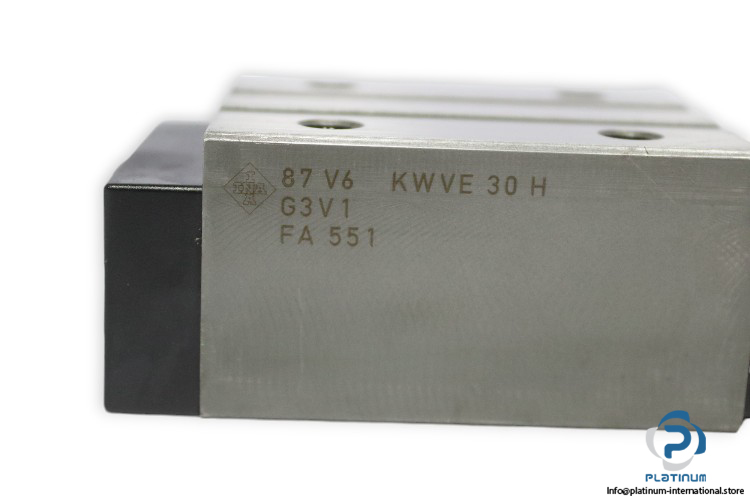

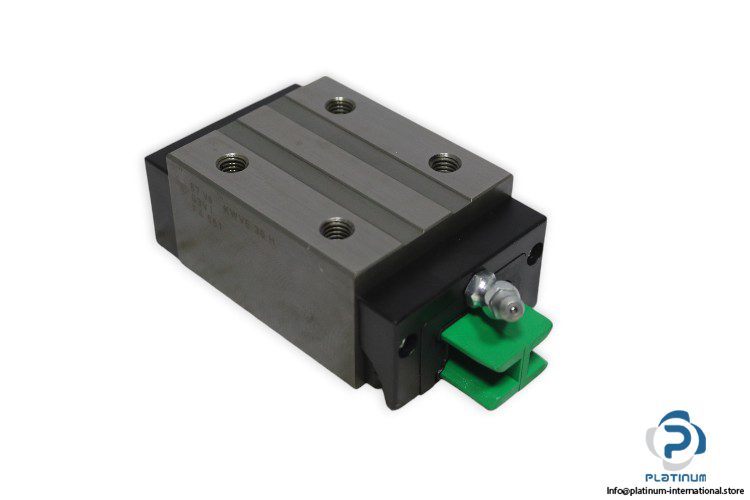

INA KWVE30 H Linear Recirculating Ball Bearing

In stock2 unitsReady to ship
Manufacturer:
 INA
Type:
LINEAR RECIRCULATING BALL BEARING
Model:
KWVE30-H
SKU
1057160
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWVE30-H

Size: 30 mm

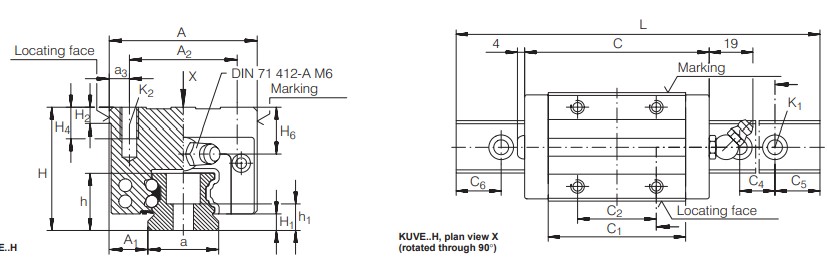

Dimensions

Total Height H: 45 mm
Width carriage A:
60 mm
Overall length carriage C:
97.6 mm
Block Height (H-H1): 38.8 mm
A1: 16 mm
A2: 40 mm
Carriage design: H, High carriage
Basic Load Ratings:
Dynamic C:
 27,5 kN
Static C0: 55 kN
Static Moment Rating About:
X axis M0x
970 Nm
Y axis M0Y: 700 Nm
Z axis M0Z: 700 Nm

Related Products

Rexroth Star 1502-3-7065 Flanged Single NUT FEM-E-C
UsedAvailable on request

Rexroth Star 1502-3-7065 Flanged Single NUT FEM-E-C

SKU: 995397

Available on request

Available through quotation
Rexroth R185331210 Roller Runner Block FLS
UsedAvailable on request

Rexroth R185331210 Roller Runner Block FLS

SKU: 989318

Available on request

Available through quotation
Rexroth R162431422 Ball Runner Block
NewAvailable on request

REXROTH

Rexroth R162431422 Ball Runner Block

SKU: 592566

Available on request

Available through quotation
Rexroth R151247014 Adjustable-Preload Single NUT SEM-E-S
New

Rexroth R151247014 Adjustable-Preload Single NUT SEM-E-S

SKU: 983298

Qty: 2

624,00$
Hiwin MGN7C Linear Guideway Block
New

HIWIN

Hiwin MGN7C Linear Guideway Block

SKU: 965355

Qty: 24

26,79$
Platinum International
Surplus, New & Used - Always Reliable
SKU: 1057160
INA KWVE30 H Linear Recirculating Ball Bearing
INA KWVE30 H Linear Recirculating Ball Bearing
PriceOn Request
Stock2 In stock
CategoryLinear Motion
ConditionUsed
SKU1057160

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWVE30-H

Technical Specifications

Weight1,05 kg
ConditionUsed
Type of ProductLinear Recirculating Ball Bearing
Shelf No.241131
