INA KWSE 25 V2 Linear Recirculating Ball Bearing

The INA KWSE 25 V2 Linear Recirculating Ball Bearing is designed for precise linear motion applications. It offers high load ratings and excellent performance under compressive, tensile, and lateral loads, making it ideal for a variety of industrial systems.

Manufacturer: INA

Type: Linear Recirculating Ball Bearing

Model: KWSE 25 V2

Technical Information:

• Size: 25

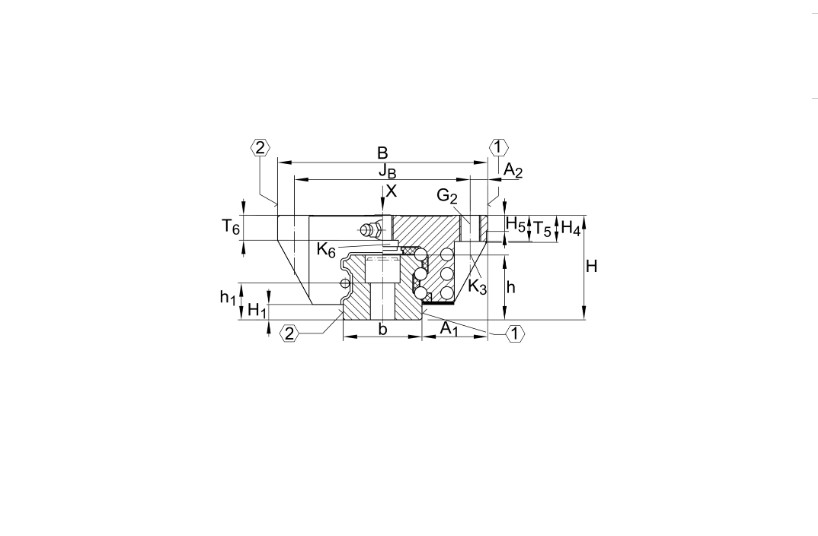

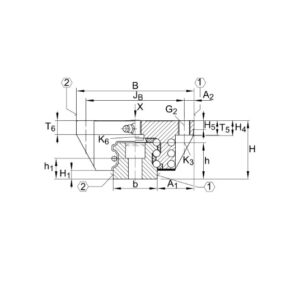

• Dimensions:
• Length (L): 81.8 mm
• Width (B): 70 mm
• Height (H): 36 mm
• Block Height: 30.8 mm
• JB: 57 mm
• JL: 45 mm

Basic Load Ratings (Compressive Load):

• Dynamic C: 28,000 N
• Static C0: 67,000 N

Basic Load Ratings (Tensile Load):

• Dynamic C: 26,000 N
• Static C0: 45,000 N

Basic Load Ratings (Lateral Load):

• Dynamic C: 28,000 N
• Static C0: 47,000 N
• Carriage Preload: V2
