Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWVE30-BH-V1

Size: 30 mm

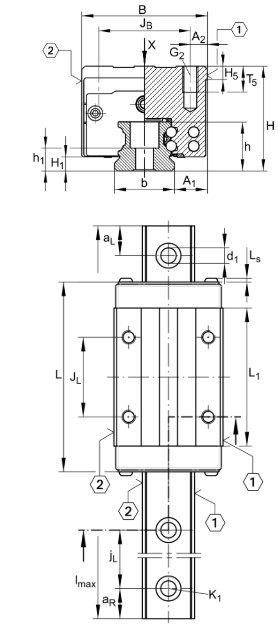

Dimensions
Total Height H: 45 mm
Width carriage B: 60 mm
Overall length carriage L: 99 mm
Block Height (H-H1): 39.1 mm
J_B: 40 mm
J_L: 40 mm
Carriage design: H, High carriage
Version: B
Preload: V1
Basic Load Ratings:
Dynamic C: 27500 N
Static C₀: 55 000 N
Static Moment Rating About:
X axis M_0x: 970 Nm
Y axis M_0Y: 700 Nm
Z axis M_0Z: 700 Nm
