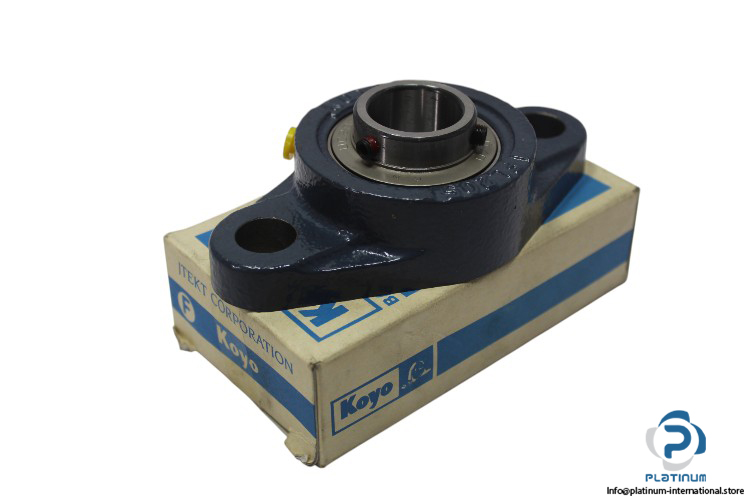

Koyo UCFL205J Oval Flange Ball Bearing Unit
The Koyo UCFL205J Oval Flange Ball Bearing Unit is designed for robust performance in industrial applications. With a 25 mm bore diameter and high dynamic and static load ratings, it ensures smooth and reliable operation over time.
Manufacturer: Koyo
Model: UCFL205J
Type: Oval Flange Ball Bearing Unit
Technical Information:
- Bore Diameter (d): 25 mm
- Overall Length: 130 mm
- Width of Inner Ring (B): 34.1 mm
- Overall Height: 68 mm
- Distance Between Attachment Bolts (J): 99 mm
- Dynamic Load Rating (Cr): 14.0 kN
- Static Load Rating (C0r): 7.85 kN
- Fatigue Load Limit: 0.357 kN
