NTN M-UCFL204D1 Oval Flange Ball Bearing Unit

Name: NTN M-UCFL204D1 OVAL FLANGE BALL BEARING UNIT
SKU: 1030880
Availability: LimitedAvailability

ntn-M-UCFL204D1-oval-flange-ball-bearing-unit-(new)-(carton)

ntn-M-UCFL204D1-oval-flange-ball-bearing-unit-(new)-(carton)-1

ntn-M-UCFL204D1-oval-flange-ball-bearing-unit-(new)-(carton)-2

ntn-M-UCFL205D1-oval-flange-ball-bearing-unit-(new)-(carton)-3

New

In stock2 unitsReady to ship

Manufacturer:

NTN

Type:

Oval flange ball bearing unit

Model:

M-UCFL204 D1

Bearing Number:

UC204

Housing Number:

FL204

Manufacturer

NTN?

SKU

1030880

Category

Plummer Block Housing Units

Condition

New

20 bearing bearings flanged Housing mm NTN Oval Two-Bolt Unit Units Žhousing

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: NTN
Type: Oval flange ball bearing unit
Model: M-UCFL204 D1
Bearing Number: UC204
Housing Number: FL204

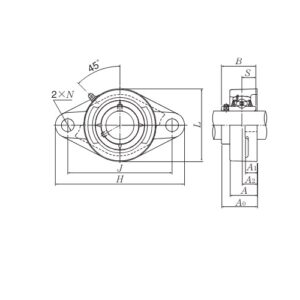

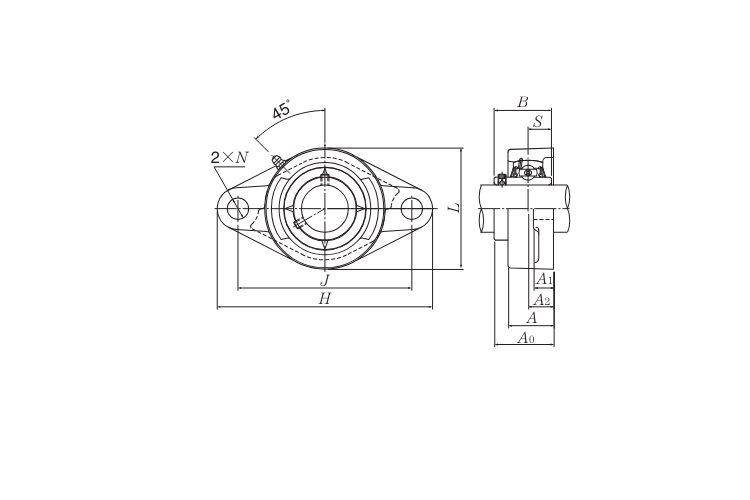

Dimensions
Bore Diameter d: 20 mm
Overall Length L: 60 mm
Overall Height H: 113 mm
Width of inner ring B: 31 mm
Distance Between Attachment Bolts J: 90 mm
Overall unit width A₀: 33.3 mm
Dynamic Load Rating: 12800 N
Static Load Rating: 6650 N
Bolt size: M10
Mounting: Oval Flange
Locking Device: Set Screw
