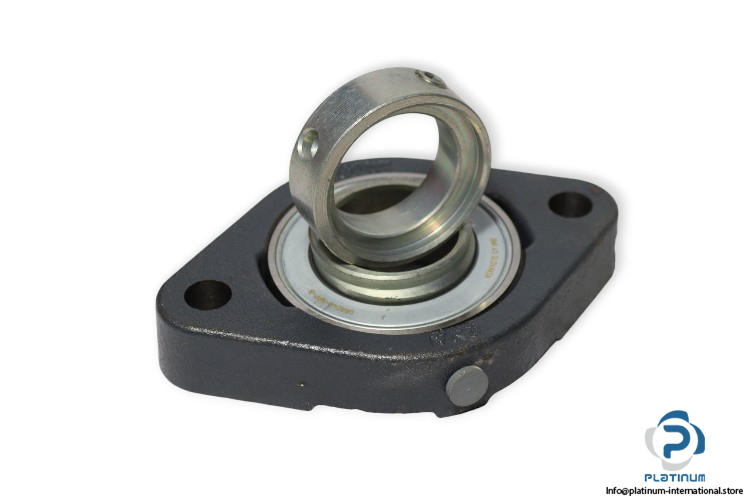

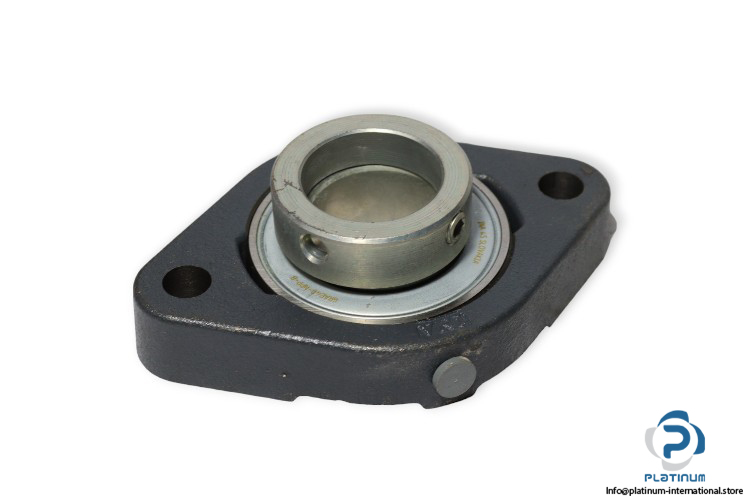

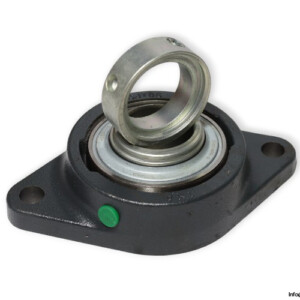

INA RCJT40-N Flanged Housing Unit
New
In stock2 unitsReady to ship
Manufacturer:
INA
Type:
Flanged Housing Unit
Model:
RCJT40 N
Replaces:
RCJT40-XL-N
Housing:
GG. CJT08
Bearing designation:

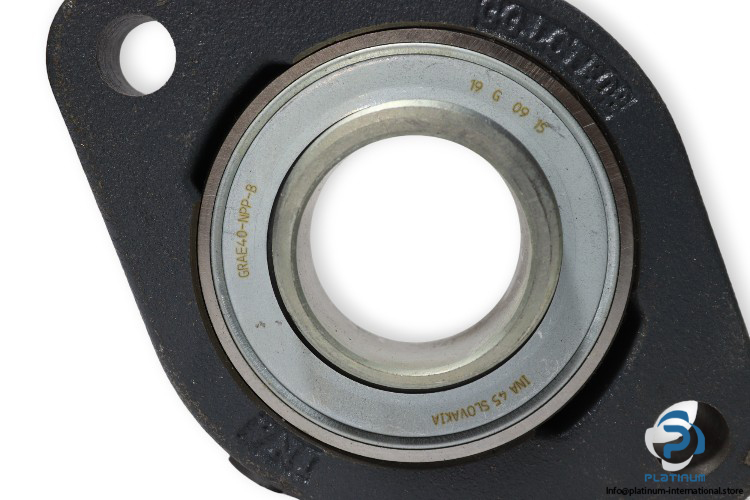

GRAE40-NPP-B
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: INA
Type: Flanged Housing Unit
Model: RCJT40 N
Replaces: RCJT40-XL-N
Housing: GG. CJT08
Bearing designation: GRAE40-NPP-B

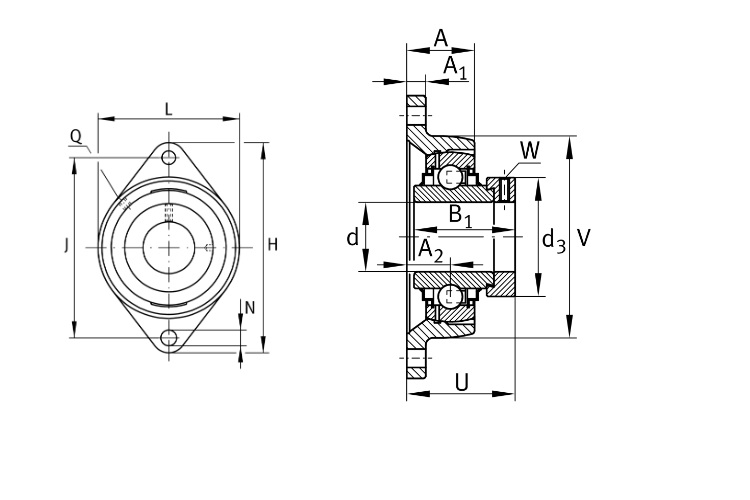

Bore Diameter d: 40 mm
Flange width L: 105 mm
Height flange H: 172 mm
Total height unit U: 59.1 mm
Distance fixing bore J: 143.5 mm
Fixing bore N: 14 mm
Basic dynamic load rating: 34500 N
Basic static load rating: 19800 N
Fatigue load limit: 840 N
Temperature range: -20 °C…120°C
Groove: N, Cast iron housing with undercut slot for end caps
Material: GG, Grey cast iron
Locking device: eccentric locking collar
